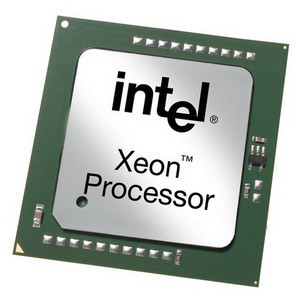

HP Intel Xeon E3-1230
Model Intel Xeon E3-1230Part no. XU954AVEAN 4054842512784
25 specifications Checked 5 days ago
- ProcessorIntel® Xeon® E3 Family
- Maximum internal memory supported by processor32 GB
- Market segmentServer
- Width37.5 mm
Overview
- Processor
- Intel® Xeon® E3 Family
- Maximum internal memory supported by processor
- 32 GB
- Market segment
- Server
- Width
- 37.5 mm
- Brand
- HP
- Category
- CPU
- Model
- Intel Xeon E3-1230
- Part numbers
- XU954AV, 638633-001
- EAN / UPC
- 4054842512784
- Also known as
- HP Intel Xeon E3-1230 processor 3.2 GHz 8 MB L3 Tray
Specifications
25 specifications in 5 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® E3 Family |
| Processor model | E3-1230 |
| Processor base frequency | 3.2 GHz |
| Processor cores | 4 |
| Processor socket | LGA 1155 (Socket H2) |
| Processor lithography | 32 nm |
| Package type | Tray |
| Component for | Server/workstation |
| Processor threads | 8 |
| System bus rate | 5 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.6 GHz |
| Processor cache | 8 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 80 W |
| CPU multiplier (bus/core ratio) | 32 |
| Memory bandwidth supported by processor (max) | 21 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 32 GB |
| Memory clock speeds supported by processor | 1066,1333 MHz |
| Memory channels | Dual-channel |
| ECC | Yes |
Features
| Specification | Value |
|---|---|
| Market segment | Server |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 37.5 mm |
| Depth | 37.5 mm |
Other features
| Specification | Value |
|---|---|
| Temperature (max) | 69.1 °C |
