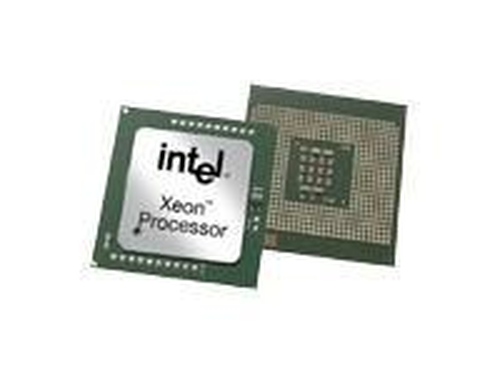

HP Intel Xeon 7130M
Model Intel Xeon 7130MPart no. 430817-B21EAN 882780616141
29 specifications Checked 3 days ago
- ProcessorIntel® Xeon® 7000 Sequence
- On-board graphics cardNo
- Execute Disable BitYes
- Tcase69 °C
- Processor package size53.3 mm
Overview
- Processor
- Intel® Xeon® 7000 Sequence
- On-board graphics card
- No
- Execute Disable Bit
- Yes
- Tcase
- 69 °C
- Processor package size
- 53.3 mm
- Brand
- HP
- Category
- CPU
- Model
- Intel Xeon 7130M
- Part number
- 430817-B21
- EAN / UPC
- 882780616141, 4054317477518, 4948382471796, 5711045866586
- Also known as
- HP Intel Xeon 7130M processor 3.2 GHz 8 MB L2
Specifications
29 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® 7000 Sequence |
| Processor model | 7130M |
| Processor base frequency | 3.2 GHz |
| Processor cores | 2 |
| Processor socket | Socket 604 (mPGA604) |
| Processor lithography | 65 nm |
| Component for | Server/workstation |
| Processor operating modes | 64-bit |
| Processor cache | 8 MB |
| Processor cache type | L2 |
| Processor front side bus | 800 MHz |
| Thermal Design Power (TDP) | 150 W |
| VID Voltage Range | 1.1 - 1.35 V |
| FSB Parity | Yes |
| CPU multiplier (bus/core ratio) | 16 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| Number of Processing Die Transistors | 1328 M |
| Processing Die size | 435 mm² |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 69 °C |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85423119 |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 53.3 mm |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-x |
