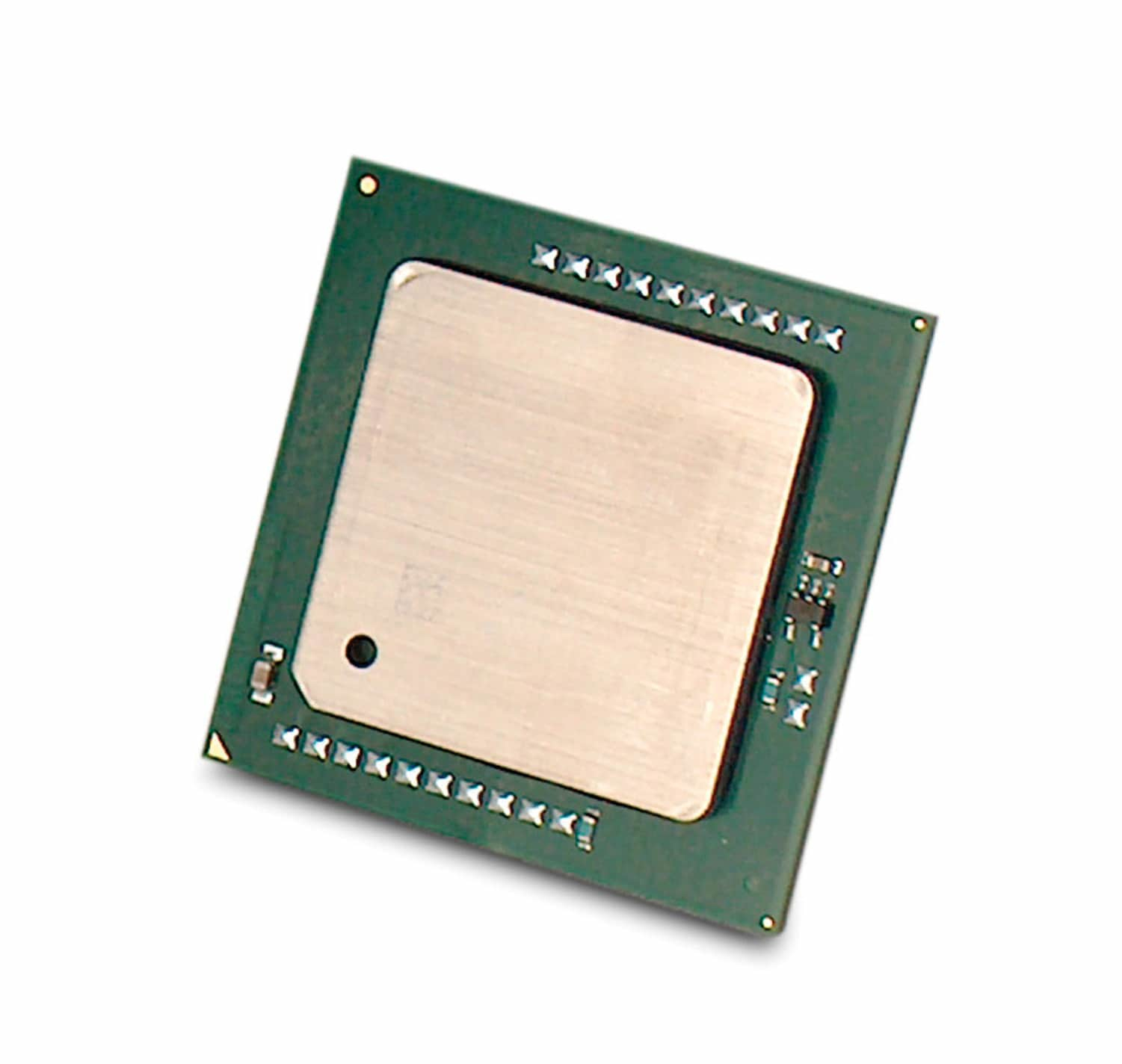

HP Intel Xeon 5160
Model Intel Xeon 5160Part no. 416660R-B21EAN 5704327767237
34 specifications Checked 3 days ago
- ProcessorIntel® Xeon® 5000 Sequence
- Weight2.05 kg
- On-board graphics cardNo
- Execute Disable BitYes
- Tcase65 °C
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Weight
- 2.05 kg
- On-board graphics card
- No
- Execute Disable Bit
- Yes
- Tcase
- 65 °C
- Brand
- HP
- Category
- CPU
- Model
- Intel Xeon 5160
- Part numbers
- 416660R-B21, 416579R-B21, 416660-B21B-RFB, 416673R-B21, 416835-B21-RFB, EY017AA-RFB +7 more
- EAN / UPC
- 5704327767237, 4054318651733, 5704327841296, 5704327821199 +4 more
- Also known as
- HP Intel Xeon 5160 processor 3 GHz 4 MB L2
Specifications
34 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | 5160 |
| Processor base frequency | 3 GHz |
| Processor cores | 2 |
| Processor socket | LGA 771 (Socket J) |
| Processor lithography | 65 nm |
| Component for | Server/workstation |
| Processor threads | 2 |
| Processor operating modes | 64-bit |
| Processor cache | 4 MB |
| Processor cache type | L2 |
| Processor front side bus | 1333 MHz |
| Thermal Design Power (TDP) | 80 W |
| VID Voltage Range | 1 - 1.5 V |
| Compatible chipsets | Intel® 5000P, Intel® 5000V, Intel® 5000X, Intel® 5000Z, Intel® 5100, Intel® 5400 |
| FSB Parity | Yes |
| CPU multiplier (bus/core ratio) | 9 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| Number of Processing Die Transistors | 291 M |
| Processing Die size | 143 mm² |
| Embedded options available | No |
| Physical Address Extension (PAE) | Yes |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Demand Based Switching | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 65 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.05 kg |
| Processor package size | 37.5 mm |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-x |
