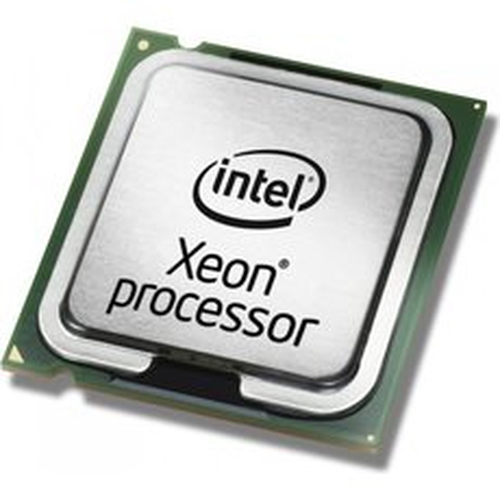

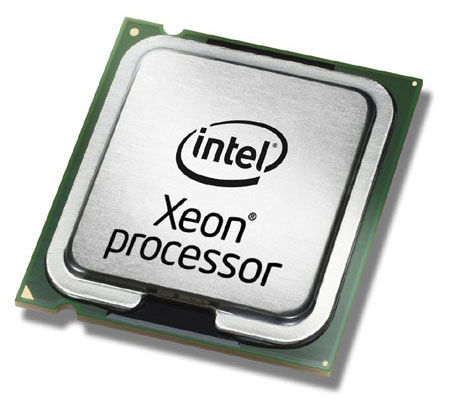

HP Intel Xeon 5150
Model Intel Xeon 5150Part no. 416659-B21-RFBEAN 5704327389323
25 specifications Checked 2 days ago
- ProcessorIntel® Xeon® 5000 Sequence
- On-board graphics cardNo
- Execute Disable BitYes
- Tcase65 °C
- Processor package size37.5 mm
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- On-board graphics card
- No
- Execute Disable Bit
- Yes
- Tcase
- 65 °C
- Processor package size
- 37.5 mm
- Brand
- HP
- Category
- CPU
- Model
- Intel Xeon 5150
- Part numbers
- 416659-B21-RFB, EX626AV, EX625AV, EX614AV, EX613AV, 416834-B21 +10 more
- EAN / UPC
- 5704327389323, 4948382462480, 5711045606571, 5711045014307 +9 more
- Also known as
- HP Intel Xeon 5150 processor 2.66 GHz 4 MB L2
Specifications
25 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | 5150 |
| Processor base frequency | 2.66 GHz |
| Processor cores | 2 |
| Processor socket | LGA 771 (Socket J) |
| Processor lithography | 65 nm |
| Component for | Server/workstation |
| Processor operating modes | 64-bit |
| Processor cache | 4 MB |
| Processor cache type | L2 |
| Processor front side bus | 1333 MHz |
| Thermal Design Power (TDP) | 65 W |
| VID Voltage Range | 1 - 1.5 V |
| FSB Parity | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| Number of Processing Die Transistors | 291 M |
| Processing Die size | 143 mm² |
Processor special features
| Specification | Value |
|---|---|
| Intel Virtualization Technology (VT-x) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 65 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 37.5 mm |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-x |
