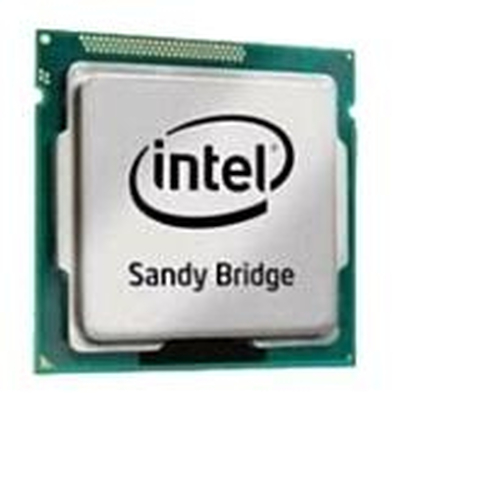

HP Intel Pentium G870
Model Intel Pentium G870Part no. B5F55AV
56 specifications Checked 11 days ago
- ProcessorIntel Pentium G
- Maximum internal memory supported by processor32 GB
- On-board graphics cardYes
- Tcase69.1 °C
- Processor package size37.5 mm
Overview
- Processor
- Intel Pentium G
- Maximum internal memory supported by processor
- 32 GB
- On-board graphics card
- Yes
- Tcase
- 69.1 °C
- Processor package size
- 37.5 mm
- Brand
- HP
- Category
- CPU
- Model
- Intel Pentium G870
- Part numbers
- B5F55AV, B5F58AV, B6T87AV
- Also known as
- HP Intel Pentium G870 processor 3.1 GHz 3 MB L3 Tray
Specifications
56 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel Pentium G |
| Processor model | G870 |
| Processor base frequency | 3.1 GHz |
| Processor cores | 2 |
| Processor socket | LGA 1155 (Socket H2) |
| Processor lithography | 32 nm |
| Package type | Tray |
| Component for | PC |
| Processor threads | 2 |
| System bus rate | 5 GT/s |
| Processor operating modes | 64-bit |
| Processor cache | 3 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 65 W |
| Compatible chipsets | Intel® B65 Express, Intel® B75 Express, Intel® H61 Express, Intel® H67 Express, Intel® H77 Express, Intel® P67 Express, Intel® Q65 Express, Intel® Q67 Express, Intel Q75 Express, Intel® Z68 Express, Intel® Z75 Express, Intel® Z77 Express |
| Stepping | Q0 |
| CPU multiplier (bus/core ratio) | 31 |
| Memory bandwidth supported by processor (max) | 21 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1066,1333 MHz |
| Memory channels | Dual-channel |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® HD Graphics |
| On-board graphics card base frequency | 850 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Number of displays supported (on-board graphics) | 2 |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Desktop |
| PCI Express slots version | 2.0 |
| Supported instruction sets | SSE4.1, SSE4.2 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Dual Display Capable Technology | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® vPro™ Platform Eligibility | No |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 69.1 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 37.5 mm |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-x |
