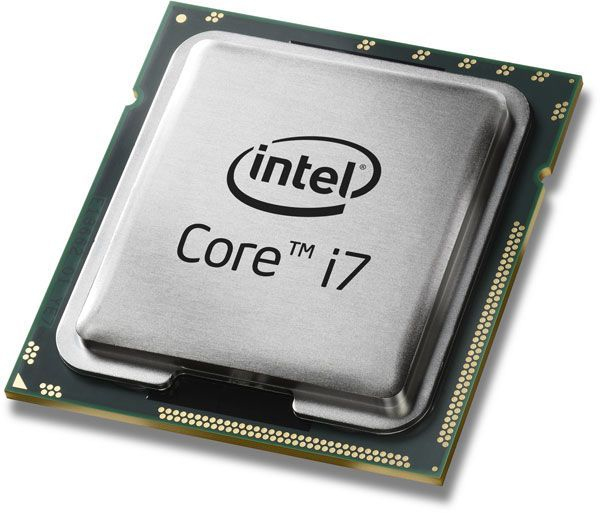

HP Intel Core i7-2920XM
Model Intel Core i7-2920XMPart no. 657850-001EAN 4054842518922
61 specifications Checked 7 days ago
- ProcessorIntel® Core™ i7 Extreme Edition
- Processor manufacturerIntel
- Maximum internal memory supported by processor32 GB
- On-board graphics cardYes
- Tjunction100 °C
Overview
- Processor
- Intel® Core™ i7 Extreme Edition
- Processor manufacturer
- Intel
- Maximum internal memory supported by processor
- 32 GB
- On-board graphics card
- Yes
- Tjunction
- 100 °C
- Brand
- HP
- Category
- CPU
- Model
- Intel Core i7-2920XM
- Part number
- 657850-001
- EAN / UPC
- 4054842518922
- Also known as
- HP Intel Core i7-2920XM processor 2.5 GHz 8 MB L3
Specifications
61 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 Extreme Edition |
| Processor generation | 2nd gen Intel® Core™ i7 |
| Processor model | i7-2920XM |
| Processor base frequency | 2.5 GHz |
| Processor cores | 4 |
| Processor socket | Socket 988 |
| Processor lithography | 32 nm |
| Component for | PC |
| Processor threads | 8 |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.5 GHz |
| Processor cache | 8 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 55 W |
| Stepping | D2 |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1066,1333,1600 MHz |
| Memory channels | Dual-channel |
| ECC | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® HD Graphics 3000 |
| On-board graphics card base frequency | 650 MHz |
| On-board graphics card dynamic frequency (max) | 1300 MHz |
| Number of displays supported (on-board graphics) | 2 |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Integrated 4G WiMAX | Yes |
| Market segment | Desktop |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Supported instruction sets | AVX |
| Embedded options available | No |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel Demand Based Switching | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tjunction | 100 °C |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
