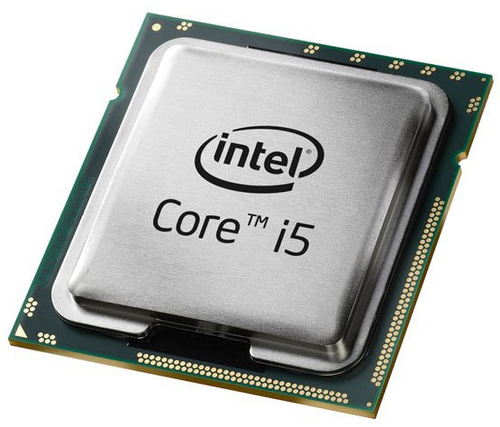

HP Intel Core i5-7500T

Model Intel Core i5-7500TPart no. Z6W96AV

81 specifications Checked yesterday

Overview

81 specifications in 6 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	7th gen Intel® Core™ i5
Processor model	i5-7500T
Processor base frequency	2.7 GHz
Processor cores	4
Processor socket	LGA 1151 (Socket H4)
Processor lithography	14 nm
Component for	PC
Processor series	Intel Core i5-7500 Desktop Series
Processor threads	4
System bus rate	8 GT/s
Processor operating modes	64-bit
Processor boost frequency	3.3 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Thermal Design Power (TDP)	35 W
Configurable TDP-down frequency	1.7 GHz
Bus type	DMI3
Processor codename	Kaby Lake

Specification	Value
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory voltage supported by processor	1.35 V
Memory channels	Dual-channel
ECC	No

Specification	Value
Discrete graphics card	No
On-board graphics card	Yes
On-board graphics card model	Intel® HD Graphics 630
Maximum on-board graphics card memory	64 GB
On-board graphics card outputs supported	DisplayPort, Embedded DisplayPort (eDP), HDMI
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
Number of displays supported (on-board graphics)	3
On-board graphics card 4K support	Yes
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.5
On-board graphics card maximum resolution (DisplayPort)	4096 x 2304 pixels
On-board graphics card maximum resolution (HDMI)	4096 x 2304 pixels
On-board graphics card maximum resolution (eDP - Integrated Flat Panel)	4096 x 2304 pixels
On-board graphics card refresh rate at maximum resolution (DisplayPort)	60 Hz
On-board graphics card refresh rate at maximum resolution (HDMI)	24 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)	60 Hz
Discrete graphics card model	Not available

Specification	Value
Execute Disable Bit	Yes
Idle States	Yes
Thermal Monitoring Technologies	Yes
Market segment	Desktop
Maximum number of PCI Express lanes	16
PCI Express slots version	3.0
PCI Express configurations	1x16, 1x8+2x4, 2x8
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
CPU configuration (max)	1
Embedded options available	Yes
Scalability	1S
Thermal solution specification	PCG 2015A

Specification	Value
Enhanced Intel SpeedStep Technology	Yes
Intel Trusted Execution Technology	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Memory Protection Extensions (Intel® MPX)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel HD Graphics	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel TSX-NI	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® Boot Guard	Yes
Intel® OS Guard	Yes
Intel® Optane™ DC Persistent Memory Supported	Yes
Intel® Optane™ Memory Ready	Yes
Intel® Secure Key	Yes

Specification	Value
Tjunction	80 °C
