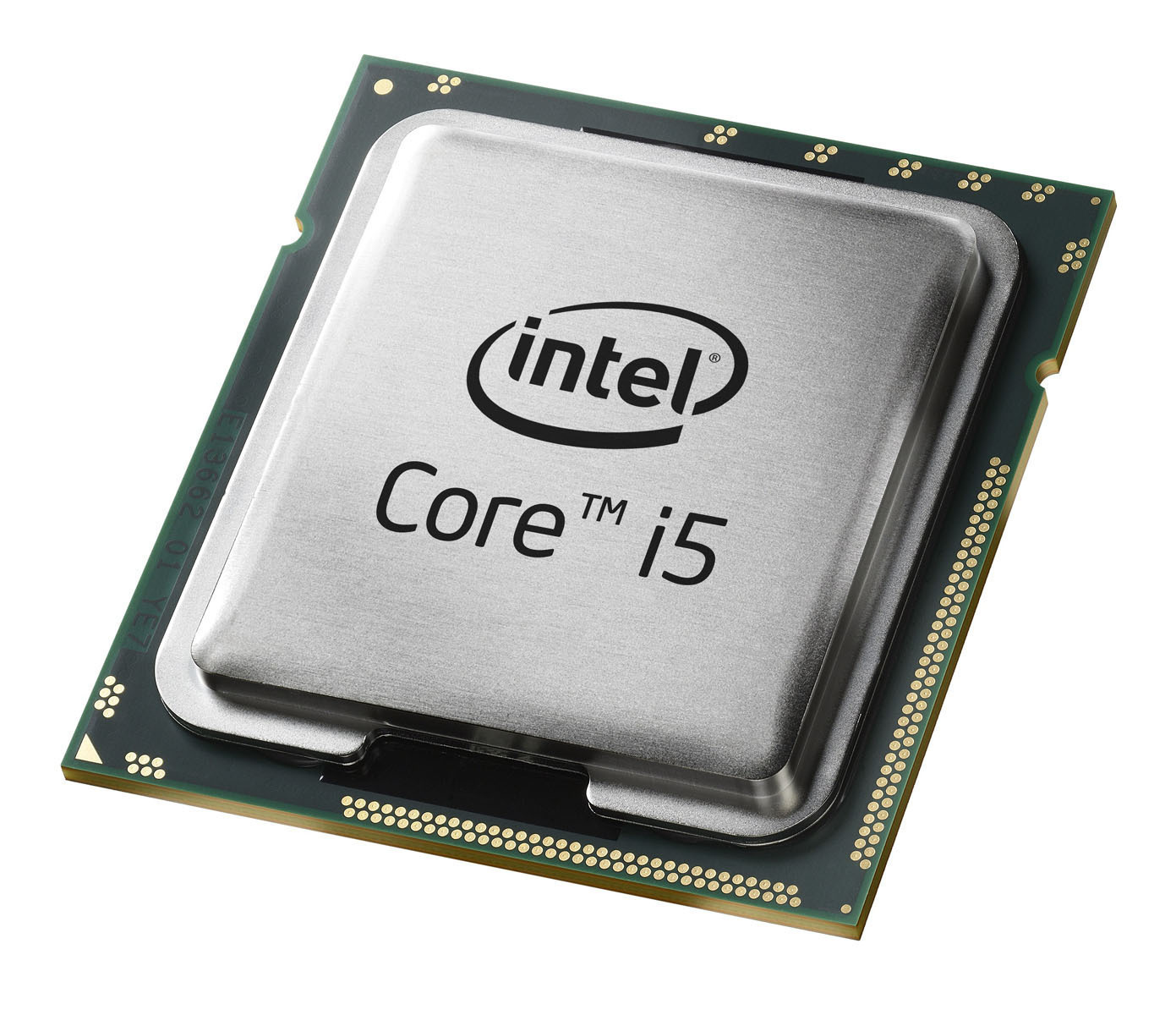

HP Intel Core i5-560M
Model Intel Core i5-560MPart no. XP590AVEAN 4054842510407
24 specifications Checked 3 days ago
- ProcessorIntel® Core™ i5
- Maximum internal memory supported by processor8 GB
- Market segmentMobile
Overview
- Processor
- Intel® Core™ i5
- Maximum internal memory supported by processor
- 8 GB
- Market segment
- Mobile
- Brand
- HP
- Category
- CPU
- Model
- Intel Core i5-560M
- Part numbers
- XP590AV, 625824-001, XN554AV, XP179AV, XP467AV, XP640AV +4 more
- EAN / UPC
- 4054842510407
- Also known as
- HP Intel Core i5-560M processor 2.66 GHz 3 MB L3 Tray
Specifications
24 specifications in 4 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Core™ i5 |
| Processor generation | Intel® Core™ i5 |
| Processor model | i5-560M |
| Processor base frequency | 2.66 GHz |
| Processor cores | 2 |
| Processor socket | PGA988 |
| Processor lithography | 32 nm |
| Package type | Tray |
| Component for | Laptop |
| Processor threads | 4 |
| System bus rate | 2.5 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.2 GHz |
| Processor cache | 3 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 35 W |
| CPU multiplier (bus/core ratio) | 20 |
| Memory bandwidth supported by processor (max) | 17.1 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 8 GB |
| Memory clock speeds supported by processor | 1066,1333 MHz |
| Memory channels | Dual-channel |
| ECC | No |
Features
| Specification | Value |
|---|---|
| Market segment | Mobile |
Other features
| Specification | Value |
|---|---|
| Temperature (max) | 105 °C |
