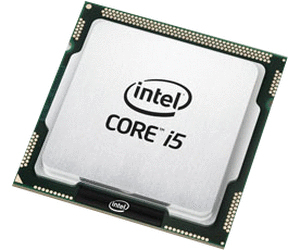

HP Intel Core i5-3230M
Model Intel Core i5-3230MPart no. 711903-001
56 specifications Checked 2 days ago
- ProcessorIntel® Core™ i5
- Maximum internal memory supported by processor32 GB
- On-board graphics cardYes
- Tjunction105 °C
Overview
- Processor
- Intel® Core™ i5
- Maximum internal memory supported by processor
- 32 GB
- On-board graphics card
- Yes
- Tjunction
- 105 °C
- Brand
- HP
- Category
- CPU
- Model
- Intel Core i5-3230M
- Part numbers
- 711903-001, C9R00AV, C9R01AV, C9R30AV, D1R50AV, D2R99AV +3 more
- Also known as
- HP Intel Core i5-3230M processor 2.6 GHz 3 MB L3
Specifications
56 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Core™ i5 |
| Processor generation | 3rd gen Intel® Core™ i5 |
| Processor model | i5-3230M |
| Processor base frequency | 2.6 GHz |
| Processor cores | 2 |
| Processor lithography | 22 nm |
| Component for | Laptop |
| Processor threads | 4 |
| System bus rate | 5 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.2 GHz |
| Processor cache | 3 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 35 W |
| Bus type | DMI |
| CPU multiplier (bus/core ratio) | 26 |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Memory channels | Dual-channel |
| ECC | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® HD Graphics 4000 |
| On-board graphics card base frequency | 650 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Integrated 4G WiMAX | Yes |
| Market segment | Mobile |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x8, 1x16, 2x4, 2x8 |
| Supported instruction sets | AVX |
| CPU configuration (max) | 1 |
| Graphics & IMC lithography | 22 nm |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Dual Display Capable Technology | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tjunction | 105 °C |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-x |
