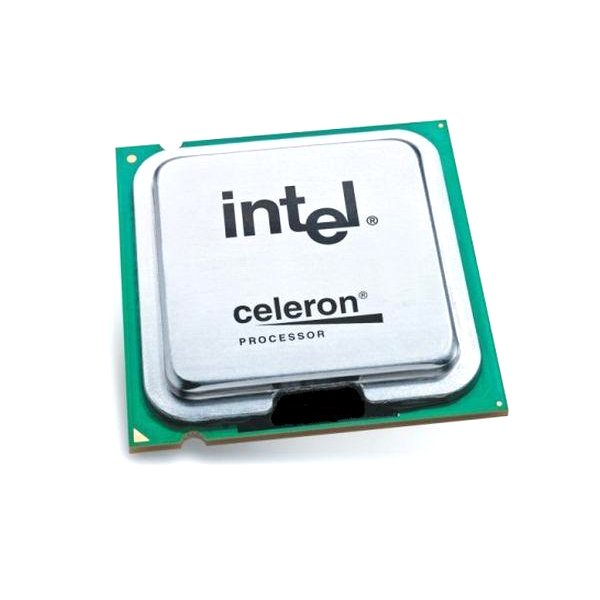

HP Intel Celeron B810
Model Intel Celeron B810Part no. WX754AVEAN 5712505000304
58 specifications Checked 4 days ago
- ProcessorIntel® Pentium®
- Maximum internal memory supported by processor16 GB
- On-board graphics cardYes
- Tjunction100 °C
- Processor package size37.5 mm
Overview
- Processor
- Intel® Pentium®
- Maximum internal memory supported by processor
- 16 GB
- On-board graphics card
- Yes
- Tjunction
- 100 °C
- Processor package size
- 37.5 mm
- Brand
- HP
- Category
- CPU
- Model
- Intel Celeron B810
- Part numbers
- WX754AV, 646760-001, 646760-005, LH531AV, LQ716AV
- EAN / UPC
- 5712505000304, 4054842515112, 4054842515105
- Also known as
- HP Intel Celeron B810 processor 1.6 GHz 2 MB L3 Tray
Specifications
58 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Pentium® |
| Processor model | B810 |
| Processor base frequency | 1.6 GHz |
| Processor cores | 2 |
| Processor socket | PGA988 |
| Processor lithography | 32 nm |
| Package type | Tray |
| Component for | PC |
| Processor threads | 2 |
| Processor operating modes | 64-bit |
| Processor cache | 2 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 35 W |
| Compatible chipsets | Intel® HM65 Express, Intel® QM67 Express |
| Stepping | Q0 |
| CPU multiplier (bus/core ratio) | 16 |
| Memory bandwidth supported by processor (max) | 21.3 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 16 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1066,1333 MHz |
| Memory channels | Dual-channel |
| ECC | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® HD Graphics |
| On-board graphics card base frequency | 650 MHz |
| On-board graphics card dynamic frequency (max) | 950 MHz |
| Number of displays supported (on-board graphics) | 2 |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Integrated 4G WiMAX | No |
| Market segment | Desktop |
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x8, 1x16, 2x4, 2x8 |
| Supported instruction sets | SSE4.1, SSE4.2 |
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Dual Display Capable Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Intel Demand Based Switching | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® vPro™ Platform Eligibility | No |
Operational conditions
| Specification | Value |
|---|---|
| Tjunction | 100 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 37.5 mm |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-x |
