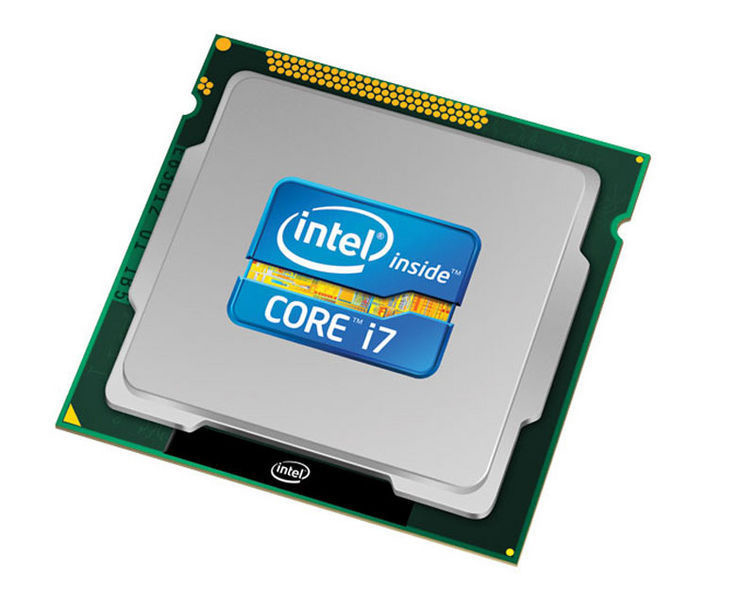

HP i7-2820QM processor
2.3 GHz 8 MB L3 Tray
Model i7-2820QMPart no. WX693AV
23 specifications Checked 20 days ago
- ProcessorIntel® Core™ i7
- Maximum internal memory supported by processor32 GB
- Maximum operating temperature100 °C
- Width37.5 mm
Overview
- Processor
- Intel® Core™ i7
- Maximum internal memory supported by processor
- 32 GB
- Maximum operating temperature
- 100 °C
- Width
- 37.5 mm
- Brand
- HP
- Category
- CPU
- Model
- i7-2820QM
- Part numbers
- WX693AV, WX722AV
- Also known as
- HP i7-2820QM processor 2.3 GHz 8 MB L3 Tray
Specifications
23 specifications in 4 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Core™ i7 |
| Processor generation | 2nd gen Intel® Core™ i7 |
| Processor model | i7-2820QM |
| Processor base frequency | 2.3 GHz |
| Processor cores | 4 |
| Processor socket | PGA988 |
| Processor lithography | 32 nm |
| Package type | Tray |
| Processor threads | 8 |
| System bus rate | 5 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.4 GHz |
| Processor cache | 8 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 45 W |
| CPU multiplier (bus/core ratio) | 23 |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 32 GB |
| Memory clock speeds supported by processor | 1066,1333,1600 MHz |
| Memory channels | Dual-channel |
Operational conditions
| Specification | Value |
|---|---|
| Maximum operating temperature | 100 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 37.5 mm |
| Height | 37.5 mm |
