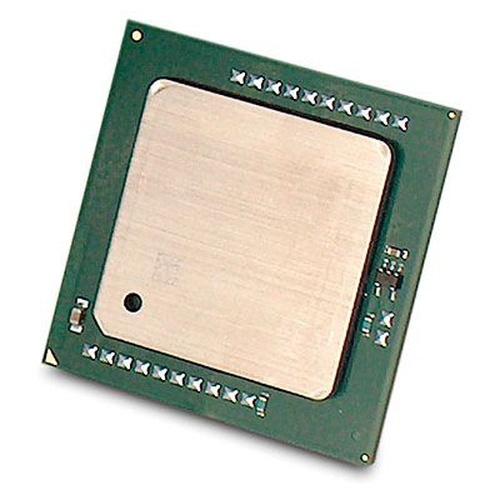

HP E5630 processor
2.53 GHz 12 MB L3 Tray
Model E5630Part no. 611144-L21EAN 4054842153628
27 specifications Checked 4 days ago
- ProcessorIntel® Xeon® 5000 Sequence
- Maximum internal memory supported by processor288 GB
- Market segmentServer
- Maximum operating temperature77.6 °C
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Maximum internal memory supported by processor
- 288 GB
- Market segment
- Server
- Maximum operating temperature
- 77.6 °C
- Brand
- HP
- Category
- CPU
- Model
- E5630
- Part numbers
- 611144-L21, 631475-L21
- EAN / UPC
- 4054842153628, 4054842153949, 5711045881350, 5711045880605
- Also known as
- HP E5630 processor 2.53 GHz 12 MB L3 Tray
Specifications
27 specifications in 4 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | E5630 |
| Processor base frequency | 2.53 GHz |
| Processor cores | 4 |
| Processor socket | Socket B (LGA 1366) |
| Processor lithography | 32 nm |
| Package type | Tray |
| Component for | Server/workstation |
| Processor threads | 8 |
| System bus rate | 5.86 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 2.8 GHz |
| Processor cache | 12 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 80 W |
| VID Voltage Range | 0.75 - 1.35 V |
| Stepping | B1 |
| CPU multiplier (bus/core ratio) | 19 |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| Processor code | SLBVB |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 288 GB |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory channels | Triple-channel |
| ECC | Yes |
Features
| Specification | Value |
|---|---|
| Market segment | Server |
| Bandwidth | 26214.4 MB/s |
Operational conditions
| Specification | Value |
|---|---|
| Maximum operating temperature | 77.6 °C |
