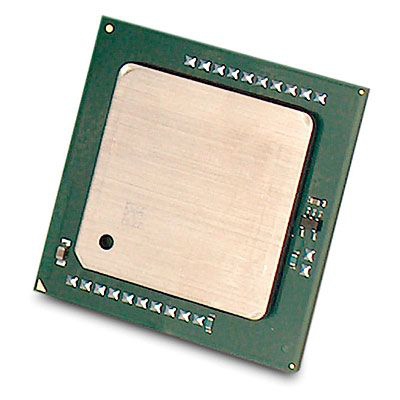

HP E5507 processor
2.26 GHz 4 MB L3 Tray
Model E5507Part no. 624887-B21EAN 5711045880988
22 specifications Checked 2 days ago
- ProcessorIntel® Xeon® 5000 Sequence
- Maximum internal memory supported by processor144 GB
- Market segmentServer
- Maximum operating temperature76 °C
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Maximum internal memory supported by processor
- 144 GB
- Market segment
- Server
- Maximum operating temperature
- 76 °C
- Brand
- HP
- Category
- CPU
- Model
- E5507
- Part number
- 624887-B21
- EAN / UPC
- 5711045880988
- Also known as
- HP E5507 processor 2.26 GHz 4 MB L3 Tray
Specifications
22 specifications in 4 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | E5507 |
| Processor base frequency | 2.26 GHz |
| Processor cores | 4 |
| Processor socket | Socket B (LGA 1366) |
| Processor lithography | 45 nm |
| Package type | Tray |
| Component for | Server/workstation |
| Processor threads | 4 |
| System bus rate | 4.8 GT/s |
| Processor operating modes | 64-bit |
| Processor cache | 4 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 80 W |
| VID Voltage Range | 0.75 - 1.35 V |
| Memory bandwidth supported by processor (max) | 19.2 GB/s |
| Processor code | SLBKC |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 144 GB |
| Memory clock speeds supported by processor | 800 MHz |
| Memory channels | Triple-channel |
Features
| Specification | Value |
|---|---|
| Market segment | Server |
Operational conditions
| Specification | Value |
|---|---|
| Maximum operating temperature | 76 °C |
