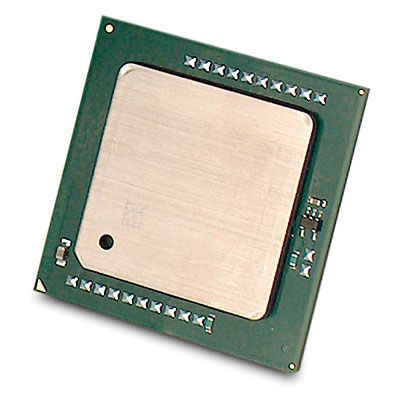

HP E5503 processor
2 GHz 4 MB L3 Tray
Model E5503Part no. 631485-L21EAN 4054842153987
25 specifications Checked 8 days ago
- ProcessorIntel® Xeon® 5000 Sequence
- Maximum internal memory supported by processor144 GB
- Market segmentServer
- Maximum operating temperature76 °C
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Maximum internal memory supported by processor
- 144 GB
- Market segment
- Server
- Maximum operating temperature
- 76 °C
- Brand
- HP
- Category
- CPU
- Model
- E5503
- Part numbers
- 631485-L21, 611148-L21
- EAN / UPC
- 4054842153987, 4054842153666, 5711045880728, 5711045881503
- Also known as
- HP E5503 processor 2 GHz 4 MB L3 Tray
Specifications
25 specifications in 4 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | E5503 |
| Processor base frequency | 2 GHz |
| Processor cores | 2 |
| Processor socket | Socket B (LGA 1366) |
| Processor lithography | 45 nm |
| Package type | Tray |
| Component for | Server/workstation |
| Processor threads | 2 |
| System bus rate | 4.8 GT/s |
| Processor operating modes | 64-bit |
| Processor cache | 4 MB |
| Processor cache type | L3 |
| Processor front side bus | 800 MHz |
| Thermal Design Power (TDP) | 80 W |
| VID Voltage Range | 0.75 - 1.35 V |
| CPU multiplier (bus/core ratio) | 15 |
| Memory bandwidth supported by processor (max) | 19.2 GB/s |
| Processor code | SLBKD |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 144 GB |
| Memory clock speeds supported by processor | 800 MHz |
| Memory channels | Triple-channel |
| ECC | Yes |
Features
| Specification | Value |
|---|---|
| Market segment | Server |
Operational conditions
| Specification | Value |
|---|---|
| Maximum operating temperature | 76 °C |
