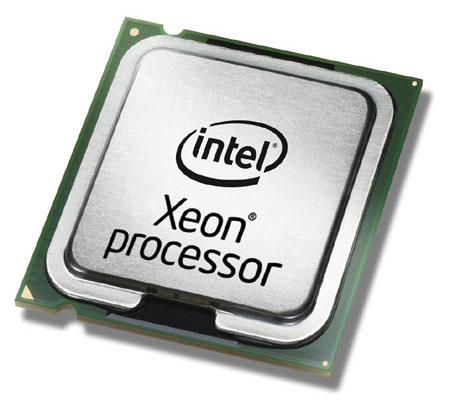

Xeon E5-2680V3 processor
2.5 GHz 30 MB L3 Tray
Model E5-2680V3Part no. SR1XP
86 specifications Checked today
- ProcessorIntel Xeon E5 v3
- GraphicsNot available
- TypeProcessor
- Processor manufacturerIntel
- Maximum internal memory supported by processor768 GB
- Discrete graphics cardNo
Overview
- Processor
- Intel Xeon E5 v3
- Graphics
- Not available
- Type
- Processor
- Processor manufacturer
- Intel
- Maximum internal memory supported by processor
- 768 GB
- Discrete graphics card
- No
- Brand
- HP
- Category
- CPU
- Model
- E5-2680V3
- Part number
- SR1XP
- Also known as
- HP Xeon E5-2680V3 processor 2.5 GHz 30 MB L3 Tray
Specifications
86 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E5 v3 |
| Processor model | E5-2680V3 |
| Processor base frequency | 2.5 GHz |
| Processor cores | 12 |
| Processor socket | LGA 2011-v3 |
| Processor lithography | 22 nm |
| Package type | Tray |
| Component for | Server/workstation |
| Processor series | Intel Xeon E5-2600 v3 |
| Processor threads | 24 |
| System bus rate | 9.6 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.3 GHz |
| Processor cache | 30 MB |
| Processor cache type | L3 |
| L3 cache speed | 2.5 GHz |
| Thermal Design Power (TDP) | 120 W |
| VID Voltage Range | 0.65 - 1.3 V |
| Stepping | M1 |
| Bus type | QPI |
| Number of QPI links | 2 |
| Memory bandwidth supported by processor (max) | 68 GB/s |
| Processor codename | Haswell |
| Processor code | SR1XP |
| Processor ARK ID | 81908 |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 768 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866,2133 MHz |
| Memory channels | Quad-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | No |
| On-board graphics card model | Not available |
| Discrete graphics card model | Not available |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 40 |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX |
| CPU configuration (max) | 2 |
| Embedded options available | Yes |
| PCI Express CEM revision | 3.0 |
| Physical Address Extension (PAE) | 46 bit |
| Physical Address Extension (PAE) | Yes |
| Scalability | 2S |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Flex Memory Access | No |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Conflict-Free processor | No |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Identity Protection Technology version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 84.5 °C |
Technical details
| Specification | Value |
|---|---|
| Processor cache | 30720 KB |
| Product type | Processor |
| Bus bandwidth | 9.6 |
| Bus speed | 9.6 GT/s |
| Bus type units | GT/s |
| Last change | 63903513 |
| Launch date | Q3'14 |
| Maximum memory | 768 GB |
| Processor brand name | Intel Xeon v2 |
| Product family | Intel Xeon Processor E5 v3 Family |
| Status | Launched |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8542310001 |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 52.5 x 45 mm |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Maximum internal memory | 786432 MB |
