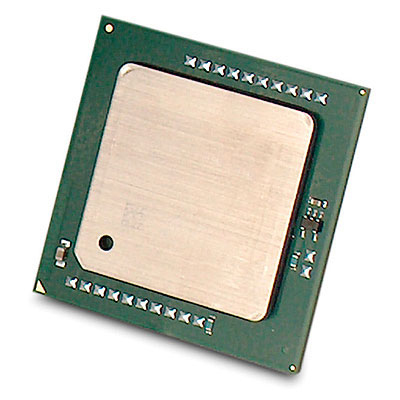

HP DL580 G7 Intel Xeon E7-4860
Model DL580 G7 Intel Xeon E7-4860Part no. 643069-B21
20 specifications Checked 20 days ago
- ProcessorIntel® Xeon® E7 Family
- Market segmentServer
- Maximum operating temperature69 °C
Overview
- Processor
- Intel® Xeon® E7 Family
- Market segment
- Server
- Maximum operating temperature
- 69 °C
- Brand
- HP
- Category
- CPU
- Model
- DL580 G7 Intel Xeon E7-4860
- Part number
- 643069-B21
- Also known as
- HP DL580 G7 Intel Xeon E7-4860 processor 2.26 GHz 24 MB L3 Tray
Specifications
20 specifications in 3 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® E7 Family |
| Processor model | E7-4860 |
| Processor base frequency | 2.26 GHz |
| Processor cores | 10 |
| Processor socket | LGA 1567 (Socket LS) |
| Processor lithography | 32 nm |
| Package type | Tray |
| Component for | Server/workstation |
| Processor threads | 20 |
| System bus rate | 6.4 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 2.666 GHz |
| Processor cache | 24 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 130 W |
| Stepping | A2 |
| CPU multiplier (bus/core ratio) | 17 |
| Processor code | SLC3S |
Features
| Specification | Value |
|---|---|
| Market segment | Server |
Operational conditions
| Specification | Value |
|---|---|
| Maximum operating temperature | 69 °C |
