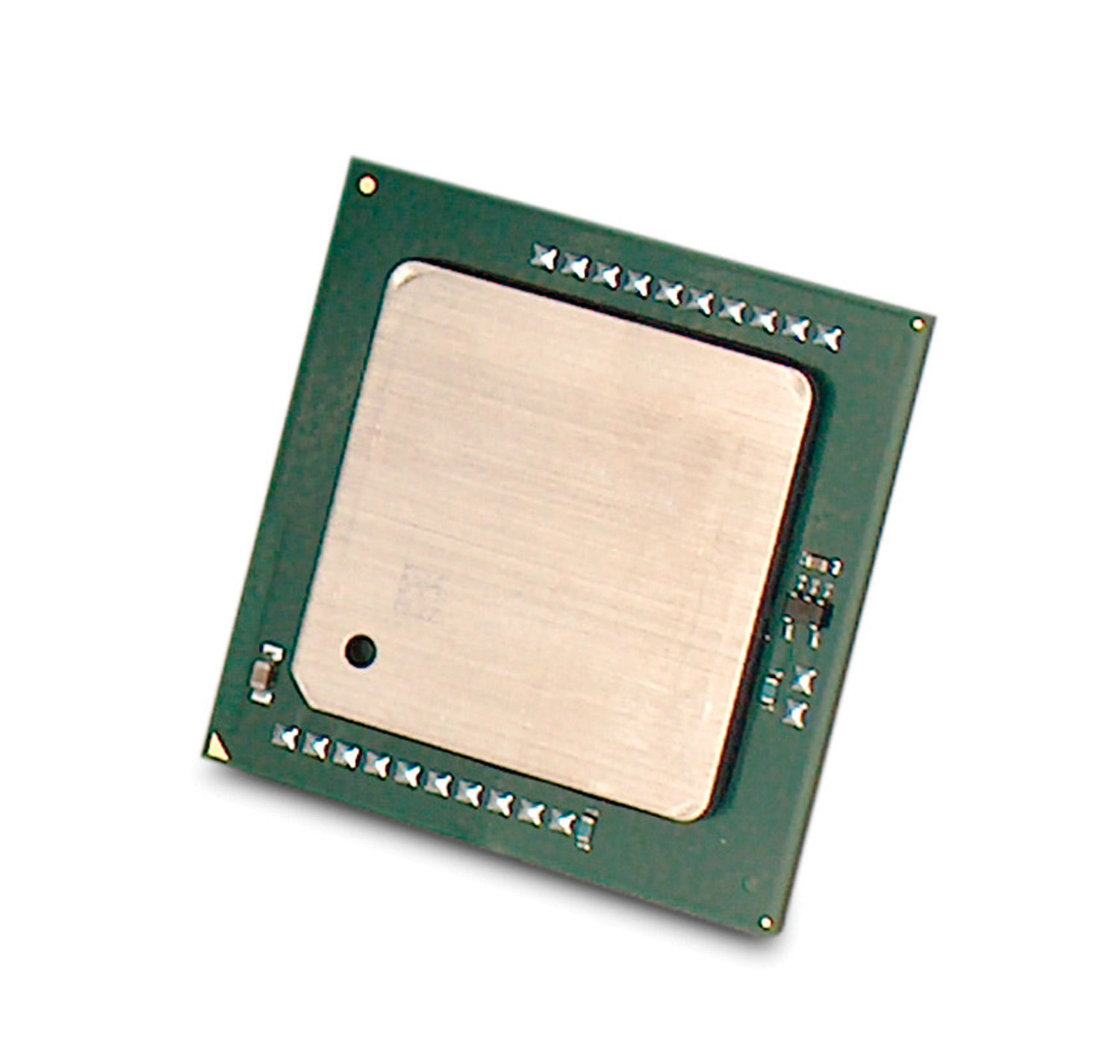

HP DL380 G7 Intel Xeon X5677 Processor Kit
Model DL380 G7 Intel Xeon X5677 Processor KitPart no. 614547-B21
22 specifications Checked 3 days ago
- ProcessorIntel® Xeon® 5000 Sequence
- Market segmentDesktop
- Maximum operating temperature80.4 °C
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Market segment
- Desktop
- Maximum operating temperature
- 80.4 °C
- Brand
- HP
- Category
- CPU
- Model
- DL380 G7 Intel Xeon X5677 Processor Kit
- Part number
- 614547-B21
- Also known as
- HP DL380 G7 Intel Xeon X5677 Kit processor 3.46 GHz 12 MB L3 Tray
Specifications
22 specifications in 4 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | X5677 |
| Processor base frequency | 3.46 GHz |
| Processor cores | 4 |
| Processor socket | Socket B (LGA 1366) |
| Processor lithography | 32 nm |
| Package type | Tray |
| Component for | PC |
| Processor threads | 8 |
| System bus rate | 6.40 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.73 GHz |
| Processor cache | 12 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 130 W |
| Processor core voltage (AC) | 1.3 V |
| VID Voltage Range | 0.750 - 1.350 V |
| CPU multiplier (bus/core ratio) | 26 |
Features
| Specification | Value |
|---|---|
| Market segment | Desktop |
| Bandwidth | 32000 MB/s |
Operational conditions
| Specification | Value |
|---|---|
| Maximum operating temperature | 80.4 °C |
Other features
| Specification | Value |
|---|---|
| L1 cache | 0.256 MB |
