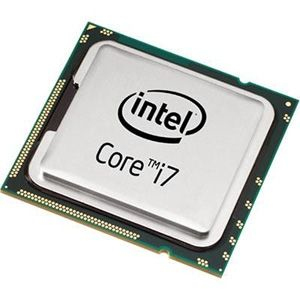

HP B2T49AV processor

3.4 GHz 8 MB L3

Model B2T49AV

61 specifications Checked 2 days ago

Overview

61 specifications in 8 groups

Specification	Value
Processor family	Intel® Core™ i7
Processor generation	3rd gen Intel® Core™ i7
Processor model	i7-3770
Processor base frequency	3.4 GHz
Processor cores	4
Processor socket	LGA 1155 (Socket H2)
Processor lithography	22 nm
Component for	PC
Processor threads	8
System bus rate	5 GT/s
Processor operating modes	64-bit
Processor boost frequency	3.9 GHz
Processor cache	8 MB
Processor cache type	L3
Thermal Design Power (TDP)	77 W
Compatible chipsets	Intel® B75 Express, Intel® H61 Express, Intel® H67 Express, Intel® H77 Express, Intel® P67 Express, Intel Q75 Express, Intel® Z68 Express, Intel® Z75 Express, Intel® Z77 Express
Stepping	E1
Bus type	DMI
CPU multiplier (bus/core ratio)	34
Memory bandwidth supported by processor (max)	25.6 GB/s

Specification	Value
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory channels	Dual-channel
ECC	No

Specification	Value
On-board graphics card	Yes
On-board graphics card model	Intel® HD Graphics 4000
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
Number of displays supported (on-board graphics)	3

Specification	Value
Execute Disable Bit	Yes
Idle States	Yes
Thermal Monitoring Technologies	Yes
Market segment	Desktop
PCI Express slots version	3.0
PCI Express configurations	1x8, 1x16, 2x4, 2x8
Supported instruction sets	AVX, SSE4.1, SSE4.2
CPU configuration (max)	1
Embedded options available	Yes
Graphics & IMC lithography	22 nm

Specification	Value
Enhanced Intel SpeedStep Technology	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Turbo Boost Technology	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® vPro™ Platform Eligibility	Yes

Specification	Value
Tcase	67.4 °C

Specification	Value
Processor package size	37.5 mm

Specification	Value
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
