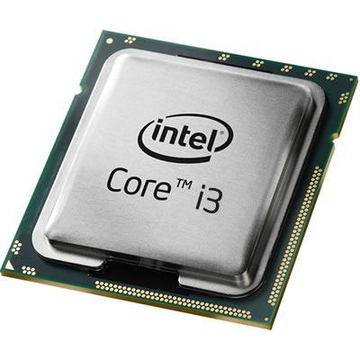

HP B0T07AV processor
3.3 GHz 3 MB L3 Tray
Model B0T07AV
47 specifications Checked 2 days ago
- ProcessorIntel® Core™ i3
- Maximum internal memory supported by processor32 GB
- On-board graphics cardYes
- Tcase69.1 °C
Overview
- Processor
- Intel® Core™ i3
- Maximum internal memory supported by processor
- 32 GB
- On-board graphics card
- Yes
- Tcase
- 69.1 °C
- Brand
- HP
- Category
- CPU
- Model
- B0T07AV
- Part number
- B0T07AV
- Also known as
- HP B0T07AV processor 3.3 GHz 3 MB L3 Tray
Specifications
47 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Core™ i3 |
| Processor generation | 2nd gen Intel® Core™ i3 |
| Processor model | i3-2120 |
| Processor base frequency | 3.3 GHz |
| Processor cores | 2 |
| Processor socket | LGA 1155 (Socket H2) |
| Processor lithography | 32 nm |
| Package type | Tray |
| Component for | PC |
| Processor threads | 4 |
| System bus rate | 5 GT/s |
| Processor operating modes | 64-bit |
| Processor cache | 3 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 65 W |
| Compatible chipsets | Intel® B65 Express, Intel® H61 Express, Intel® H67 Express, Intel® P67 Express, Intel® Q67 Express |
| Bus type | DMI |
| CPU multiplier (bus/core ratio) | 33 |
| Memory bandwidth supported by processor (max) | 21 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1066,1333 MHz |
| Memory channels | Dual-channel |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® HD Graphics 2000 |
| On-board graphics card base frequency | 850 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Number of displays supported (on-board graphics) | 2 |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Desktop |
| PCI Express slots version | 2.0 |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Dual Display Capable Technology | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 69.1 °C |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-x |
