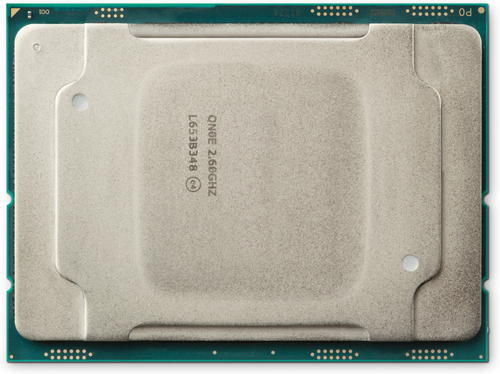

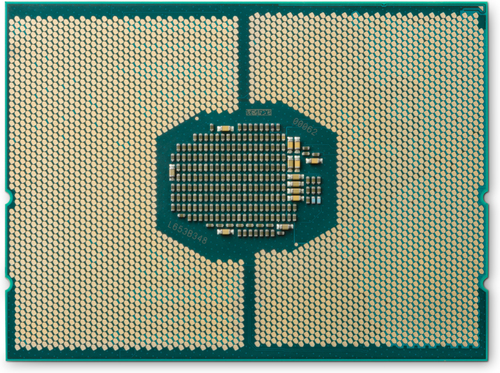

5220R processor
2.2 GHz 35.75 MB L3 Tray
Model 5220RPart no. 8BD06AAEAN 194441040951
34 specifications Checked today
- ProcessorIntel® Xeon® Gold
- GraphicsNot available
- Processor manufacturerIntel
- Maximum internal memory supported by processor1 TB
- Discrete graphics cardNo
- Maximum number of PCI Express lanes48
Overview
- Processor
- Intel® Xeon® Gold
- Graphics
- Not available
- Processor manufacturer
- Intel
- Maximum internal memory supported by processor
- 1 TB
- Discrete graphics card
- No
- Maximum number of PCI Express lanes
- 48
- Brand
- HP
- Category
- CPU
- Model
- 5220R
- Part numbers
- 8BD06AA, 8BC99AA
- EAN / UPC
- 194441040951, 194441041057
- Also known as
- HP 5220R processor 2.2 GHz 35.75 MB L3 Tray
Specifications
34 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® Gold |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor model | 5220R |
| Processor base frequency | 2.2 GHz |
| Processor cores | 24 |
| Processor socket | LGA 3647 (Socket P) |
| Processor lithography | 14 nm |
| Package type | Tray |
| Cooler included | No |
| Component for | Server/workstation |
| Processor threads | 48 |
| System bus rate | 10.4 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 4 GHz |
| Processor cache | 35.75 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 150 W |
| Processor codename | Cascade Lake |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 1 TB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2667 MHz |
| Memory channels | Hexa-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | No |
| On-board graphics card model | Not available |
| Discrete graphics card model | Not available |
Features
| Specification | Value |
|---|---|
| Maximum number of PCI Express lanes | 48 |
| PCI Express slots version | 3.0 |
| Scalability | 2S |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 86 °C |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85423119 |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 76.0 x 56.5 mm |
