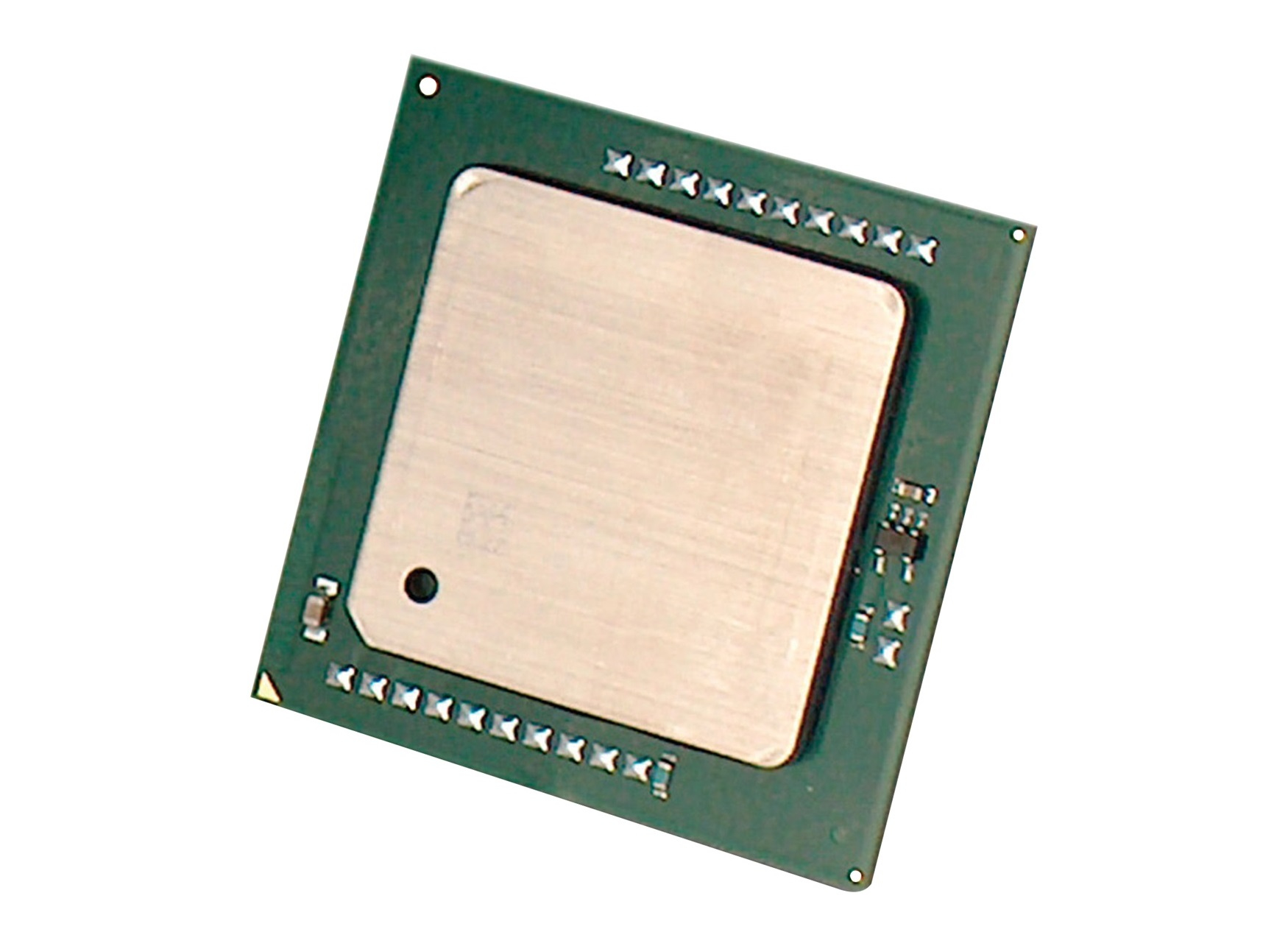

Fujitsu Xeon E5-2643 v4 6C 3.40 GHz
Model Xeon E5-2643 v4 6C 3.40 GHzPart no. S26361-F3933-L443EAN 4057185715348
56 specifications Checked 2 days ago
- ProcessorIntel® Xeon® E5 v4
- Maximum internal memory supported by processor1.53 TB
- On-board graphics cardNo
- Execute Disable BitYes
- Tcase75 °C
Overview
- Processor
- Intel® Xeon® E5 v4
- Maximum internal memory supported by processor
- 1.53 TB
- On-board graphics card
- No
- Execute Disable Bit
- Yes
- Tcase
- 75 °C
- Brand
- Fujitsu
- Category
- CPU
- Model
- Xeon E5-2643 v4 6C 3.40 GHz
- Part number
- S26361-F3933-L443
- EAN / UPC
- 4057185715348
- Also known as
- Fujitsu Xeon E5-2643 v4 6C 3.40 GHz processor 3.4 GHz 20 MB Smart Cache Tray
Specifications
56 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® E5 v4 |
| Processor model | E5-2643V4 |
| Processor base frequency | 3.4 GHz |
| Processor cores | 6 |
| Processor socket | LGA 2011-v3 |
| Processor lithography | 14 nm |
| Package type | Tray |
| Component for | Server/workstation |
| Processor series | Intel Xeon E5-2600 v4 |
| Processor threads | 12 |
| System bus rate | 9.6 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.7 GHz |
| Processor cache | 20 MB |
| Processor cache type | Smart Cache |
| Thermal Design Power (TDP) | 135 W |
| Stepping | R0 |
| Bus type | QPI |
| Number of QPI links | 2 |
| Memory bandwidth supported by processor (max) | 76.8 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 1.53 TB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866,2133,2400 MHz |
| Memory channels | Quad-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 40 |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX 2.0 |
| CPU configuration (max) | 2 |
| Embedded options available | No |
| Physical Address Extension (PAE) | 46 bit |
| Physical Address Extension (PAE) | Yes |
| Scalability | 2S |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Flex Memory Access | No |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Turbo Boost Technology | 2.0 |
| Conflict-Free processor | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel TSX-NI | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 75 °C |
