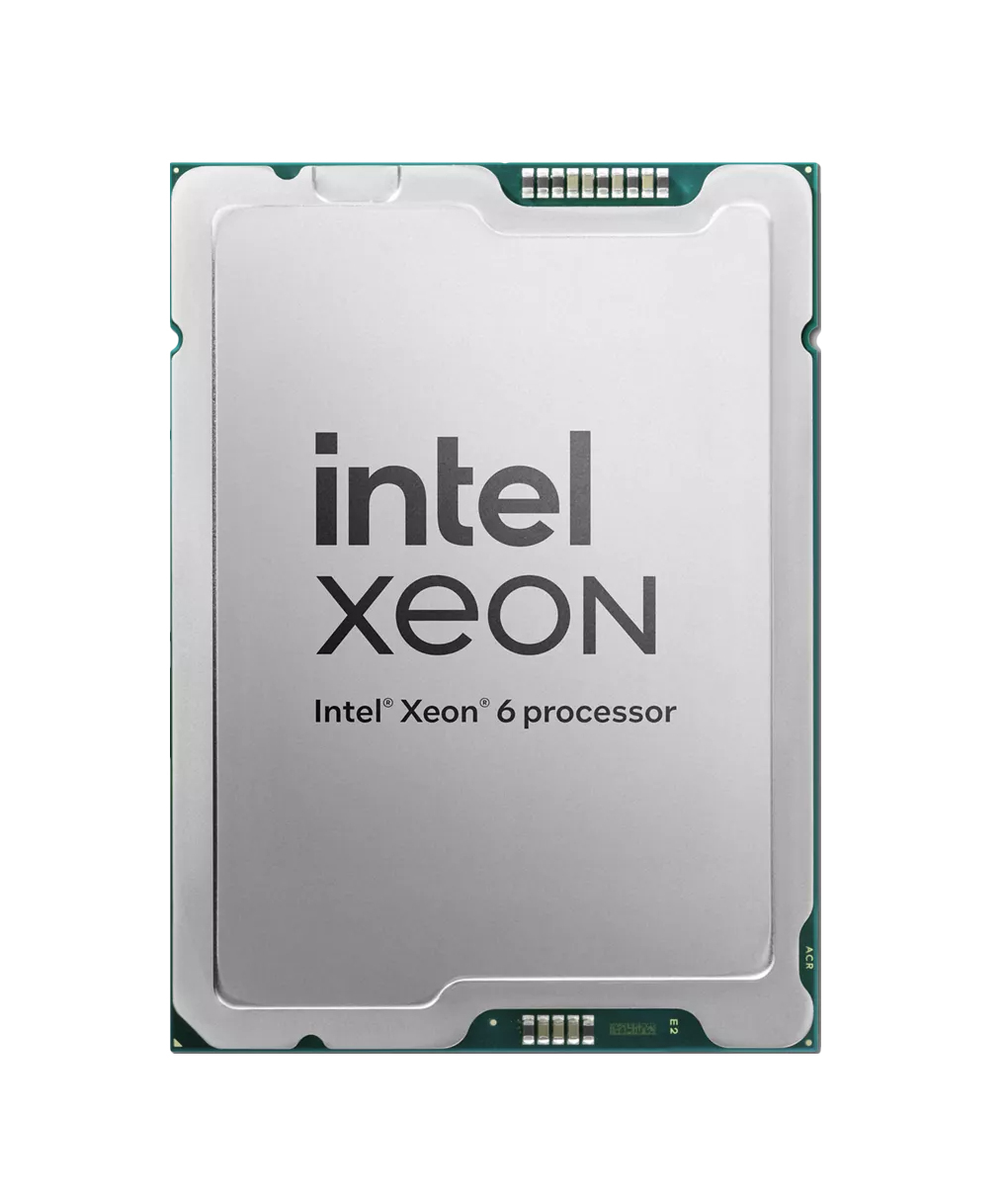

PY-CP70X1 processor
2.2 GHz 48 MB L3
Model PY-CP70X1
53 specifications Checked today
- ProcessorIntel® Xeon®
- GraphicsNot available
- Processor manufacturerIntel
- Maximum internal memory supported by processor4 TB
- Discrete graphics cardNo
- Execute Disable BitYes
Overview
- Processor
- Intel® Xeon®
- Graphics
- Not available
- Processor manufacturer
- Intel
- Maximum internal memory supported by processor
- 4 TB
- Discrete graphics card
- No
- Execute Disable Bit
- Yes
- Brand
- Fujitsu
- Category
- CPU
- Model
- PY-CP70X1
- Part number
- PY-CP70X1
- Also known as
- Fujitsu PY-CP70X1 processor 2.2 GHz 48 MB L3
Specifications
53 specifications in 5 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor model | 6505P |
| Processor base frequency | 2.2 GHz |
| Processor cores | 12 |
| Processor socket | LGA 4710 |
| Cooler included | No |
| Processor threads | 24 |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.9 GHz |
| Processor cache | 48 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 150 W |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 4 TB |
| Memory types supported by processor | DDR5-SDRAM |
| Memory clock speeds supported by processor | 6400 MHz |
| Memory channels | Octa-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | No |
| On-board graphics card model | Not available |
| Discrete graphics card model | Not available |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Maximum number of PCI Express lanes | 88 |
| PCI Express slots version | 5.0 |
| Scalability | 2S |
Processor special features
| Specification | Value |
|---|---|
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Transactional Synchronization Extensions | Yes |
| Intel® Total Memory Encryption | Yes |
| Intel® Control-flow Enforcement Technology (CET) | Yes |
| Intel® Crypto Acceleration | Yes |
| Intel® Platform Firmware Resilience Support | Yes |
| Intel® Trust Domain Extensions (Intel® TDX) | Yes |
| Intel 64 | Yes |
| Intel QuickAssist Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Boot Guard | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| Intel® Resource Director Technology (Intel® RDT) | Yes |
| Intel® Run Sure Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Mode-based Execute Control (MBE) | Yes |
| Intel® QuickAssist Software Acceleration | Yes |
| Intel® Total Memory Encryption - Multi Key | Yes |
| Intel® Advanced Matrix Extensions (AMX) | Yes |
