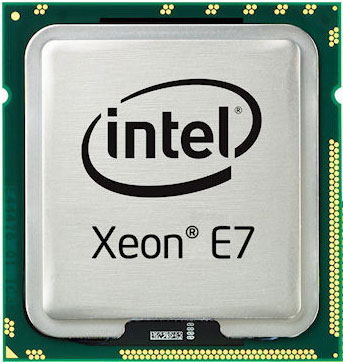

Fujitsu Intel Xeon E7-8893 v2
Model Intel Xeon E7-8893 v2Part no. S26361-F5308-L893EAN 4053026627870
48 specifications Checked 2 days ago
- ProcessorIntel® Xeon® E7 V2 Family
- Maximum internal memory supported by processor1.53 TB
- On-board graphics cardNo
- Execute Disable BitYes
- Tcase77 °C
- Processor package size52 mm
Overview
- Processor
- Intel® Xeon® E7 V2 Family
- Maximum internal memory supported by processor
- 1.53 TB
- On-board graphics card
- No
- Execute Disable Bit
- Yes
- Tcase
- 77 °C
- Processor package size
- 52 mm
- Brand
- Fujitsu
- Category
- CPU
- Model
- Intel Xeon E7-8893 v2
- Part numbers
- S26361-F5308-L893, MC-2BCD11, MC-3BCD11, MC-3BCD11B
- EAN / UPC
- 4053026627870
- Also known as
- Fujitsu Intel Xeon E7-8893 v2 processor 3.4 GHz 37.5 MB L3
Specifications
48 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® E7 V2 Family |
| Processor model | E7-8893V2 |
| Processor base frequency | 3.4 GHz |
| Processor cores | 6 |
| Processor socket | LGA 2011 (Socket R) |
| Processor lithography | 22 nm |
| Component for | Server/workstation |
| Processor threads | 12 |
| System bus rate | 8 GT/s |
| Processor operating modes | 32-bit, 64-bit |
| Processor boost frequency | 3.7 GHz |
| Processor cache | 37.5 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 155 W |
| Bus type | QPI |
| Number of QPI links | 3 |
| Memory bandwidth supported by processor (max) | 85 GB/s |
| Processor codename | Ivy Bridge |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 1.53 TB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1066,1333,1600 MHz |
| Memory channels | Quad-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 32 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16, 1x4, 1x8 |
| Supported instruction sets | AVX |
| Embedded options available | No |
| Scalability | S8S |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel TSX-NI | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 77 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 52 mm |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
