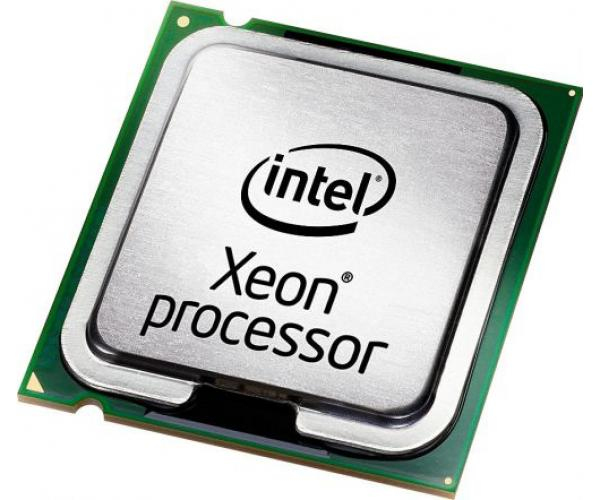

Fujitsu Intel Xeon E7-8857 v2
Model Intel Xeon E7-8857 v2Part no. S26361-F5308-L857EAN 4053026627863
90 specifications Checked 2 days ago
- ProcessorIntel® Xeon® E7 V2 Family
- Maximum internal memory supported by processor1.53 TB
- On-board graphics cardNo
- Execute Disable BitYes
- Tcase73 °C
- Born on dateQ1'14
Overview
- Processor
- Intel® Xeon® E7 V2 Family
- Maximum internal memory supported by processor
- 1.53 TB
- On-board graphics card
- No
- Execute Disable Bit
- Yes
- Tcase
- 73 °C
- Born on date
- Q1'14
- Brand
- Fujitsu
- Category
- CPU
- Model
- Intel Xeon E7-8857 v2
- Part numbers
- S26361-F5308-L857, 38039466, MC-3BCG11, MC-3BCG11B
- EAN / UPC
- 4053026627863
- Also known as
- Fujitsu Intel Xeon E7-8857 v2 processor 3 GHz 30 MB L3 Tray
Specifications
90 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® E7 V2 Family |
| Processor model | E7-8857V2 |
| Processor base frequency | 3 GHz |
| Processor cores | 12 |
| Processor socket | LGA 2011 (Socket R) |
| Processor lithography | 22 nm |
| Package type | Tray |
| Component for | Server/workstation |
| Processor series | Intel Xeon E7-8800 v2 |
| Processor threads | 12 |
| System bus rate | 8 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.6 GHz |
| Processor cache | 30 MB |
| Processor cache type | L3 |
| L3 cache speed | 3 GHz |
| Thermal Design Power (TDP) | 130 W |
| Compatible chipsets | Intel® C602J |
| FSB Parity | No |
| Stepping | D1 |
| Bus type | QPI |
| Number of QPI links | 3 |
| Memory bandwidth supported by processor (max) | 85 GB/s |
| Processor codename | Ivy Bridge |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 1.53 TB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1066,1333,1600 MHz |
| Memory channels | Quad-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 32 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | x4, x8, x16 |
| Supported instruction sets | AVX |
| CPU configuration (max) | 8 |
| Embedded options available | No |
| Physical Address Extension (PAE) | 46 bit |
| Physical Address Extension (PAE) | Yes |
| Scalability | S8S |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Dual Display Capable Technology | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Conflict-Free processor | No |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Enhanced Halt State | Yes |
| Intel Instruction Replay Technology | No |
| Intel Instruction Replay Technology version | 0.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | 1 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Secure Key | Yes |
| Intel® vPro™ Platform Eligibility | No |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 73 °C |
Technical details
| Specification | Value |
|---|---|
| Born on date | Q1'14 |
| Bus bandwidth | 8 |
| Bus type units | GT/s |
| Launch date | 2014-02-18T00:00:00 |
| Maximum memory | 1.53 TB |
| Processor brand name | Intel Xeon v2 |
| Product name | Intel Xeon E7-8857 v2 (30M Cache, 3.00 GHz) |
| Status | 4 |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 52 mm |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-d |
| Cache memory | 30 MB |
| Maximum internal memory | 1572864 MB |
