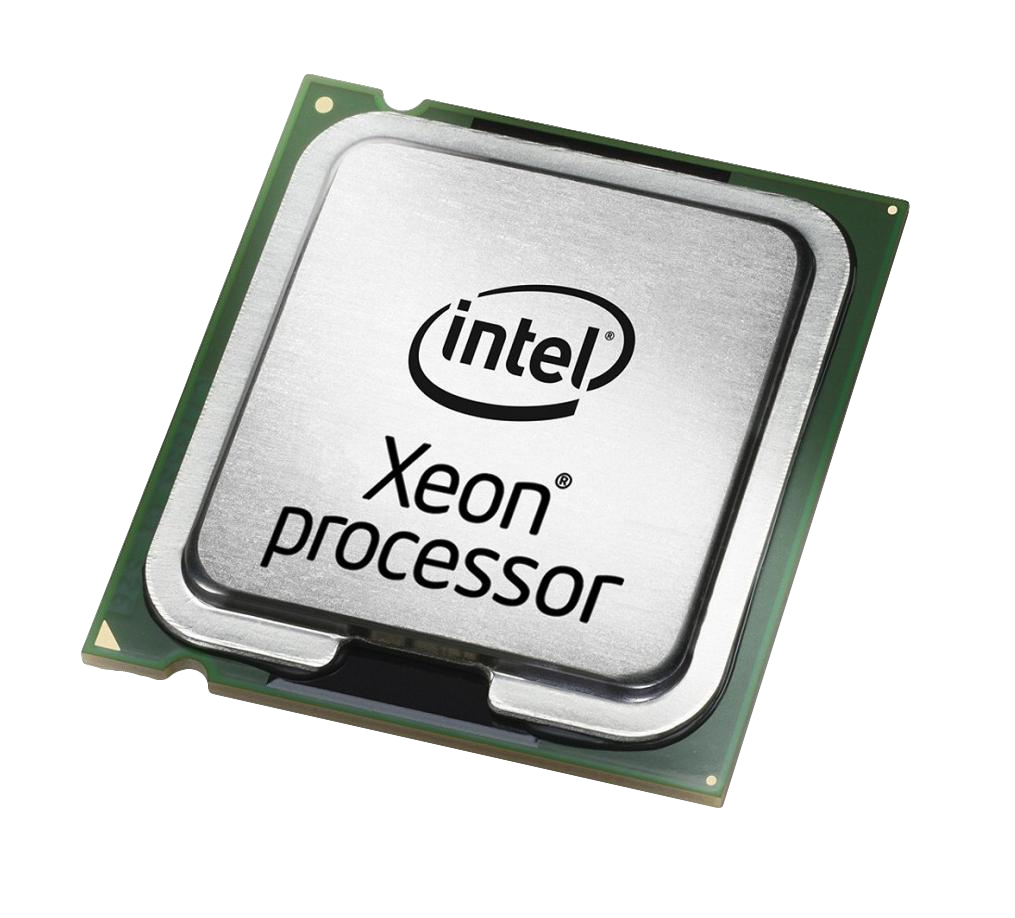

Intel Xeon E5-2698V4
Model Intel Xeon E5-2698V4Part no. S26361-F3933-L398
35 specifications Checked today
- ProcessorIntel® Xeon® E5 v4
- GraphicsNot available
- Maximum internal memory supported by processor1.53 TB
- Discrete graphics cardNo
- Execute Disable BitYes
Overview
- Processor
- Intel® Xeon® E5 v4
- Graphics
- Not available
- Maximum internal memory supported by processor
- 1.53 TB
- Discrete graphics card
- No
- Execute Disable Bit
- Yes
- Brand
- Fujitsu
- Category
- CPU
- Model
- Intel Xeon E5-2698V4
- Part number
- S26361-F3933-L398
- Also known as
- Fujitsu Intel Xeon E5-2698V4 processor 2.2 GHz 50 MB Smart Cache
Specifications
35 specifications in 4 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® E5 v4 |
| Processor model | E5-2698V4 |
| Processor base frequency | 2.2 GHz |
| Processor cores | 20 |
| Processor socket | LGA 2011-v3 |
| Processor lithography | 14 nm |
| Component for | Server/workstation |
| Processor series | Intel Xeon E5-2600 v4 |
| Processor threads | 40 |
| System bus rate | 9.6 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.6 GHz |
| Processor cache | 50 MB |
| Processor cache type | Smart Cache |
| Thermal Design Power (TDP) | 135 W |
| Stepping | B0 |
| Bus type | QPI |
| Memory bandwidth supported by processor (max) | 76.8 GB/s |
| Processor codename | Broadwell |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 1.53 TB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866,2133,2400 MHz |
| Memory channels | Quad-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | No |
| On-board graphics card model | Not available |
| Discrete graphics card model | Not available |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 40 |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX 2.0 |
