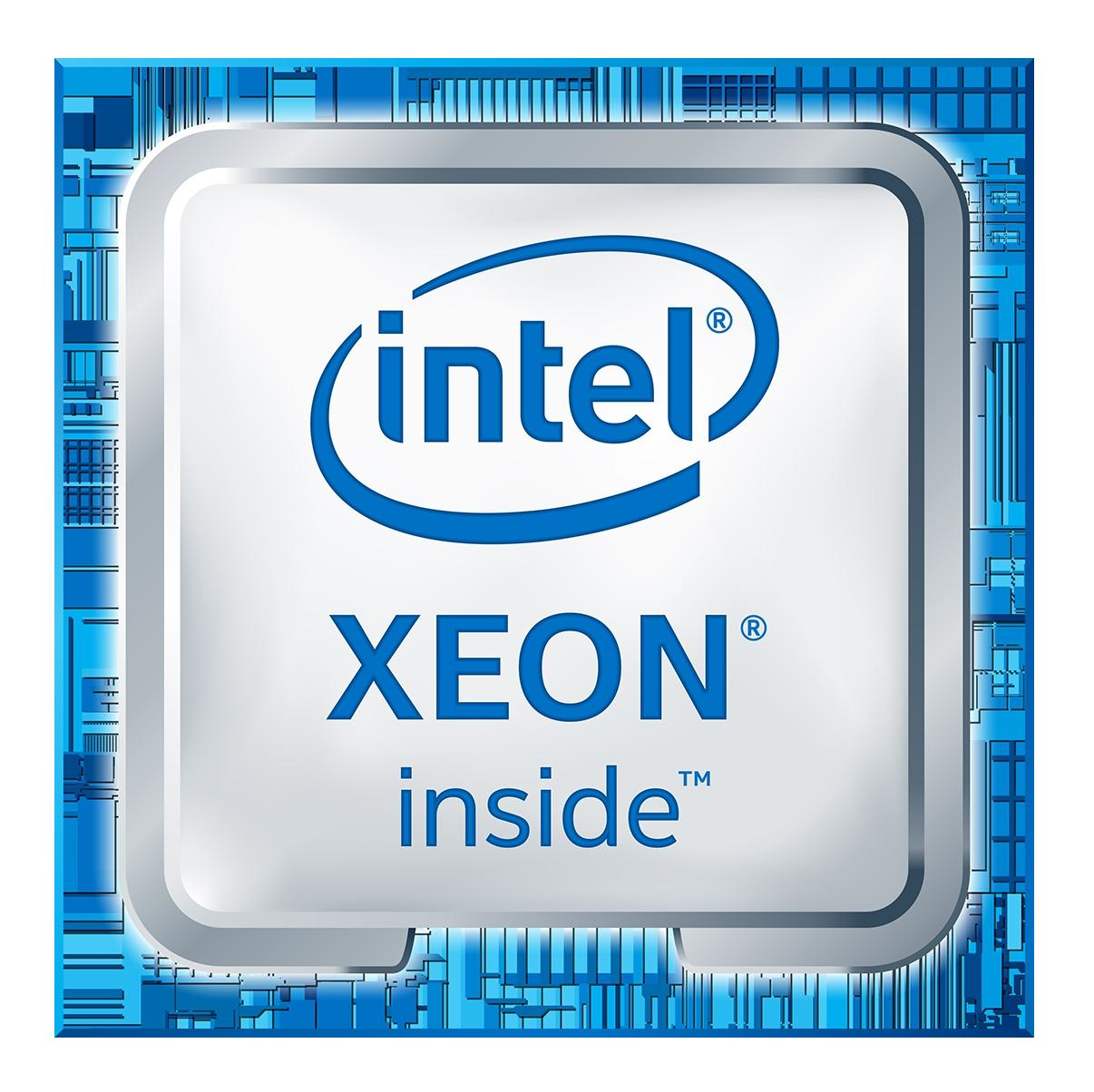

Fujitsu Intel Xeon E5-2620V4

Model Intel Xeon E5-2620V4Part no. S26361-F3933-L720

78 specifications Checked 3 days ago

Overview

Brand: Fujitsu
Category: CPU
Model: Intel Xeon E5-2620V4
Part numbers: S26361-F3933-L720, S26361-F5001-E220
Also known as: Fujitsu Xeon Intel E5-2620V4 processor 2.1 GHz 20 MB Smart Cache

78 specifications in 10 groups

Specification	Value
Processor family	Intel® Xeon® E5 v4
Processor model	E5-2620V4
Processor base frequency	2.1 GHz
Processor cores	8
Processor socket	LGA 2011-v3
Processor lithography	14 nm
Component for	Server/workstation
Processor series	Intel Xeon E5-2600 v4
Processor threads	16
System bus rate	8 GT/s
Processor operating modes	64-bit
Processor boost frequency	3 GHz
Processor cache	20 MB
Processor cache type	Smart Cache
Thermal Design Power (TDP)	85 W
Stepping	R0
Bus type	QPI
Number of QPI links	2
Memory bandwidth supported by processor (max)	68.3 GB/s
Processor codename	Broadwell
Processor ARK ID	92986

Specification	Value
Maximum internal memory supported by processor	1.53 TB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600,2133 MHz
Memory channels	Quad-channel
ECC	Yes

Specification	Value
Discrete graphics card	No
On-board graphics card	No
On-board graphics card model	Not available
Discrete graphics card model	Not available

Specification	Value
Execute Disable Bit	Yes
Idle States	Yes
Thermal Monitoring Technologies	Yes
Market segment	Server
Maximum number of PCI Express lanes	40
PCI Express slots version	3.0
Supported instruction sets	AVX 2.0
CPU configuration (max)	2
Embedded options available	Yes
PCI Express CEM revision	3.0
Physical Address Extension (PAE)	46 bit
Physical Address Extension (PAE)	Yes
Scalability	2S

Specification	Value
Enhanced Intel SpeedStep Technology	Yes
Intel Flex Memory Access	No
Intel Trusted Execution Technology	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Turbo Boost Technology	2.0
Conflict-Free processor	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	0.00
Intel Secure Key Technology version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® vPro™ Platform Eligibility	Yes

Specification	Value
Tcase	74 °C

Specification	Value
Processor cache	20480 KB
Product type	Processor
Bus bandwidth	8
Bus speed	8 GT/s
Bus type units	GT/s
Last change	63903513
Launch date	Q1'16
Processor brand name	Intel Xeon
Product family	Intel Xeon Processor E5 v4 Family
Status	Launched

Specification	Value
Harmonized System (HS) code	8542310001

Specification	Value
Processor package size	45 x 52.5 mm

Specification	Value
Maximum internal memory	1572864 MB
