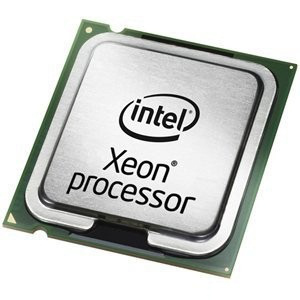

Fujitsu Intel Xeon E5-2620
Model Intel Xeon E5-2620Part no. S26361-F3676-E200EAN 4051554294991
22 specifications Checked 3 days ago
- ProcessorIntel® Xeon® E5 Family
- Memory clock speeds supported by processor800,1066,1333 MHz
- Market segmentServer
- Maximum operating temperature77.4 °C
Overview
- Processor
- Intel® Xeon® E5 Family
- Memory clock speeds supported by processor
- 800,1066,1333 MHz
- Market segment
- Server
- Maximum operating temperature
- 77.4 °C
- Brand
- Fujitsu
- Category
- CPU
- Model
- Intel Xeon E5-2620
- Part numbers
- S26361-F3676-E200, FTS0000025581, FTS0000025593, FTS0000025600, FTS0000025622, FTS0000026362 +5 more
- EAN / UPC
- 4051554294991, 887045169912, 4051554336639, 4053162063884 +1 more
- Also known as
- Fujitsu Intel Xeon E5-2620 processor 2 GHz 15 MB L3 Tray
Specifications
22 specifications in 4 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® E5 Family |
| Processor model | E5-2620 |
| Processor base frequency | 2 GHz |
| Processor cores | 6 |
| Processor socket | LGA 2011 (Socket R) |
| Processor lithography | 32 nm |
| Package type | Tray |
| Component for | Server/workstation |
| Processor threads | 12 |
| System bus rate | 7.20 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 2.5 GHz |
| Processor cache | 15 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 95 W |
| VID Voltage Range | 0.6 - 1.35 V |
| CPU multiplier (bus/core ratio) | 25 |
Memory
| Specification | Value |
|---|---|
| Memory clock speeds supported by processor | 800,1066,1333 MHz |
| Memory channels | Quad-channel |
| ECC | Yes |
Features
| Specification | Value |
|---|---|
| Market segment | Server |
Operational conditions
| Specification | Value |
|---|---|
| Maximum operating temperature | 77.4 °C |
