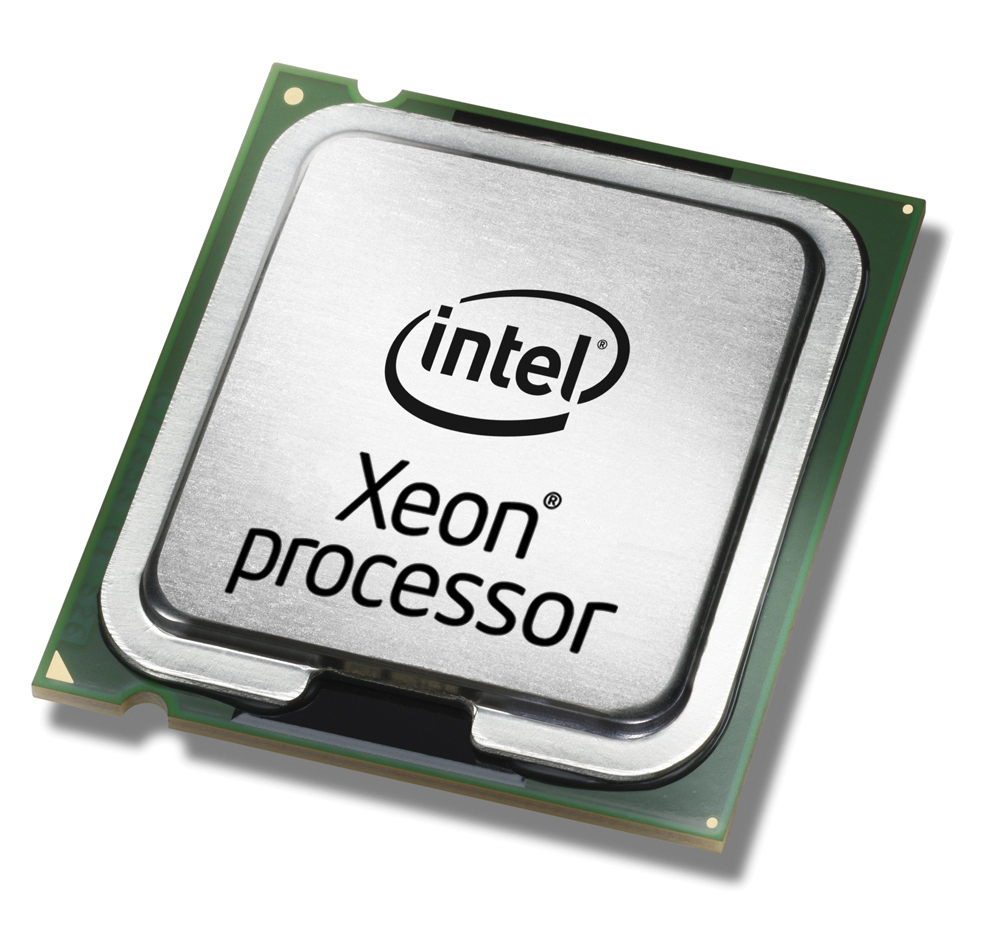

Fujitsu Intel Xeon E5-2470 8C/16T 2.30 GHz 20 MB
Model Intel Xeon E5-2470 8C/16T 2.30 GHz 20 MBPart no. S26361-F4566-L230EAN 4051554403539
45 specifications Checked 3 days ago
- ProcessorIntel® Xeon® E5 Family
- Maximum internal memory supported by processor375 GB
- On-board graphics cardNo
- Execute Disable BitYes
Overview
- Processor
- Intel® Xeon® E5 Family
- Maximum internal memory supported by processor
- 375 GB
- On-board graphics card
- No
- Execute Disable Bit
- Yes
- Brand
- Fujitsu
- Category
- CPU
- Model
- Intel Xeon E5-2470 8C/16T 2.30 GHz 20 MB
- Part number
- S26361-F4566-L230
- EAN / UPC
- 4051554403539
- Also known as
- Fujitsu Intel Xeon E5-2470 8C/16T 2.30 GHz 20 MB processor 2.3 GHz L3
Specifications
45 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® E5 Family |
| Processor model | E5-2470 |
| Processor base frequency | 2.3 GHz |
| Processor cores | 8 |
| Processor socket | LGA 1356 (Socket B2) |
| Processor lithography | 32 nm |
| Component for | Server/workstation |
| Processor threads | 16 |
| System bus rate | 8 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.1 GHz |
| Processor cache | 20 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 95 W |
| VID Voltage Range | 0.60 - 1.35 V |
| Bus type | QPI |
| Number of QPI links | 1 |
| Memory bandwidth supported by processor (max) | 38.4 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 375 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066,1333,1600 MHz |
| Memory channels | Triple-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 24 |
| PCI Express slots version | 3.0 |
| CPU configuration (max) | 2 |
| Scalability | S2S |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Demand Based Switching | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Compatibility | PRIMERGY BX920 S3 |
