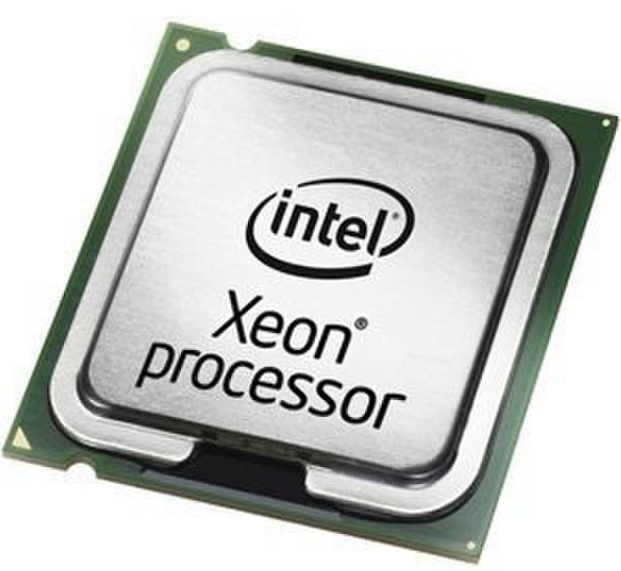

Intel Xeon E3-1245V6

Model Intel Xeon E3-1245V6Part no. S26361-F4029-E145

83 specifications Checked today

Overview

Brand: Fujitsu
Category: CPU
Model: Intel Xeon E3-1245V6
Part number: S26361-F4029-E145
Also known as: Fujitsu Xeon Intel E3-1245V6 processor 3.7 GHz 8 MB Smart Cache

83 specifications in 7 groups

Specification	Value
Processor family	Intel® Xeon® E3 v6
Processor model	E3-1245 v6
Processor base frequency	3.7 GHz
Processor cores	4
Processor socket	LGA 1151 (Socket H4)
Processor lithography	14 nm
Component for	Server/workstation
Processor threads	8
System bus rate	8 GT/s
Processor operating modes	64-bit
Processor boost frequency	4.1 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Thermal Design Power (TDP)	73 W
VID Voltage Range	0.55 - 1.52 V
Stepping	B0
Bus type	DMI3
Memory bandwidth supported by processor (max)	37.5 GB/s
Processor codename	Kaby Lake
Processor code	SR32B
Processor ARK ID	97473

Specification	Value
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory clock speeds supported by processor	1866,2400 MHz
Memory channels	Dual-channel
ECC	Yes

Specification	Value
On-board graphics card	Yes
On-board graphics card model	Intel® HD Graphics P630
Maximum on-board graphics card memory	1.7 GB
On-board graphics card outputs supported	DVI, DisplayPort, Embedded DisplayPort (eDP), HDMI
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
Number of displays supported (on-board graphics)	3
On-board graphics card 4K support	Yes
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.4
On-board graphics card maximum resolution (DisplayPort)	4096 x 2304 pixels
On-board graphics card maximum resolution (HDMI)	4096 x 2160 pixels
On-board graphics card maximum resolution (eDP - Integrated Flat Panel)	4096 x 2304 pixels
On-board graphics card refresh rate at maximum resolution (DisplayPort)	60 Hz
On-board graphics card refresh rate at maximum resolution (HDMI)	24 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)	60 Hz
On-board graphics card ID	0x191D

Specification	Value
Execute Disable Bit	Yes
Idle States	Yes
Thermal Monitoring Technologies	Yes
Market segment	Server
Maximum number of PCI Express lanes	16
PCI Express slots version	3.0
PCI Express configurations	1x16, 1x8+2x4, 2x8
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
CPU configuration (max)	1
Embedded options available	No
PCI Express CEM revision	3.0
Scalability	1S

Specification	Value
Enhanced Intel SpeedStep Technology	Yes
Intel Trusted Execution Technology	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Memory Protection Extensions (Intel® MPX)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Turbo Boost Technology	2.0
Conflict-Free processor	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Secure Key Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® Boot Guard	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® OS Guard	Yes
Intel® Optane™ Memory Ready	Yes
Intel® Secure Key	Yes
Intel® vPro™ Platform Eligibility	Yes

Specification	Value
Harmonized System (HS) code	8542310001

Specification	Value
Processor package size	37.5 x 37.5 mm
