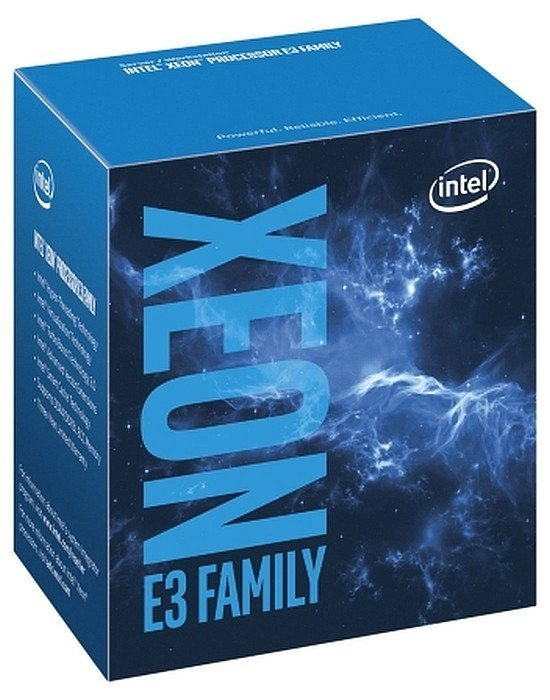

Intel Xeon E3-1230 v5
Model Intel Xeon E3-1230 v5Part no. 38046124
101 specifications Checked today
- ProcessorIntel® Xeon® E3 v5
- GraphicsNot available
- TypeProcessor
- Processor manufacturerIntel
- Maximum internal memory supported by processor64 GB
- Discrete graphics cardNo
Overview
- Processor
- Intel® Xeon® E3 v5
- Graphics
- Not available
- Type
- Processor
- Processor manufacturer
- Intel
- Maximum internal memory supported by processor
- 64 GB
- Discrete graphics card
- No
- Brand
- Fujitsu
- Category
- CPU
- Model
- Intel Xeon E3-1230 v5
- Part number
- 38046124
- Also known as
- Fujitsu Intel Xeon E3-1230 v5 processor 3.4 GHz 8 MB Smart Cache
Specifications
101 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E3 v5 |
| Processor model | E3-1230V5 |
| Processor base frequency | 3.4 GHz |
| Processor cores | 4 |
| Processor socket | LGA 1151 (Socket H4) |
| Processor lithography | 14 nm |
| Component for | Server/workstation |
| Processor series | Intel Xeon E3-1200 v5 |
| Processor threads | 8 |
| System bus rate | 8 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.8 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Thermal Design Power (TDP) | 80 W |
| VID Voltage Range | 0.55 - 1.52 V |
| Stepping | R0 |
| Bus type | DMI3 |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| Processor codename | Skylake |
| Processor code | SR2LE |
| Processor ARK ID | 88182 |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR4-SDRAM, DDR3L-SDRAM |
| Memory clock speeds supported by processor | 1333,1600,1866,2133 MHz |
| Memory voltage supported by processor | 1.35 V |
| Memory channels | Dual-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | No |
| On-board graphics card model | Not available |
| On-board graphics card 4K support | No |
| Discrete graphics card model | Not available |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Graphics & IMC lithography | 14 nm |
| PCI Express CEM revision | 3.0 |
| Scalability | 1S |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Memory Protection Extensions (Intel® MPX) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Intel® Turbo Boost Technology 2.0 frequency | 3.8 GHz |
| Intel® Transactional Synchronization Extensions | Yes |
| Conflict-Free processor | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Boot Guard | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
Technical details
| Specification | Value |
|---|---|
| Processor cache | 8192 KB |
| Product type | Processor |
| Supported memory types | DDR4-SDRAM, DDR3L-SDRAM |
| Bus bandwidth | 8 |
| Bus speed | 8 GT/s |
| Bus type units | GT/s |
| Last change | 63903513 |
| Launch date | Q4'15 |
| Maximum memory | 64 GB |
| Maximum resolution & refresh rate (DisplayPort) | N/A |
| Maximum resolution & refresh rate (HDMI) | N/A |
| Maximum resolution & refresh rate (Integrated Flat Panel) | N/A |
| Maximum resolution & refresh rate (VGA) | N/A |
| Maximum resolution (WiDi) | N/A |
| Processor brand name | Intel Xeon |
| Product family | Intel Xeon Processor E3 v5 Family |
| Status | Launched |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85423119 |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 37.5 x 37.5 mm |
Other features
| Specification | Value |
|---|---|
| Compatibility | Intel Server System R1304SPOSHBN Intel Server System R1304SPOSHOR Intel Server System R1208SPOSHOR Intel Server Board S1200SPL Intel Server Board S1200SPS Intel Server Board S1200SPO |
| Maximum internal memory | 64 GB |
| Maximum internal memory | 65536 MB |
| Graphics output | N/A |
