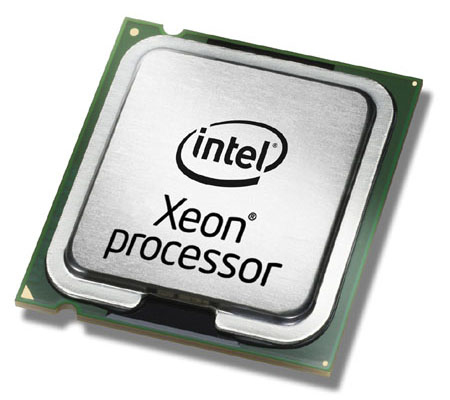

Intel Xeon E-2334
Model Intel Xeon E-2334Part no. PYBCP63E2
62 specifications Checked today
- ProcessorIntel Xeon E
- GraphicsNot available
- Processor manufacturerIntel
- Maximum internal memory supported by processor128 GB
- Discrete graphics cardNo
- Execute Disable BitYes
Overview
- Processor
- Intel Xeon E
- Graphics
- Not available
- Processor manufacturer
- Intel
- Maximum internal memory supported by processor
- 128 GB
- Discrete graphics card
- No
- Execute Disable Bit
- Yes
- Brand
- Fujitsu
- Category
- CPU
- Model
- Intel Xeon E-2334
- Part number
- PYBCP63E2
- Also known as
- Fujitsu Intel Xeon E-2334 processor 3.4 GHz 8 MB Smart Cache Tray
Specifications
62 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E |
| Processor model | E-2334 |
| Processor base frequency | 3.4 GHz |
| Processor cores | 4 |
| Processor socket | LGA 1200 (Socket H5) |
| Processor lithography | 14 nm |
| Package type | Tray |
| Component for | Server/workstation |
| Processor threads | 8 |
| System bus rate | 8 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 4.8 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Thermal Design Power (TDP) | 65 W |
| Processor ARK ID | 212258 |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 128 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory channels | Dual-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | No |
| Discrete graphics card model | Not available |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 20 |
| PCI Express slots version | 4.0 |
| PCI Express configurations | 1x16+1x4, 2x8+1x4, 1x8+3x4 |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0, AVX-512 |
| CPU configuration (max) | 1 |
| Scalability | 1S |
| Export Control Classification Number (ECCN) | 5A992CN3 |
| Commodity Classification Automated Tracking System (CCATS) | G167599 |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Memory Protection Extensions (Intel® MPX) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Turbo Boost Technology 2.0 frequency | 4.8 GHz |
| Intel® Transactional Synchronization Extensions | No |
| Maximum Enclave Size Support for Intel® SGX | 0.5 GB |
| Intel 64 | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Boot Guard | Yes |
| Intel® OS Guard | Yes |
| Intel® Optane™ DC Persistent Memory Supported | No |
| Intel® Secure Key | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tjunction | 100 °C |
Technical details
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Launch date | Q3'21 |
| Status | Launched |
| Servicing status | Baseline Servicing |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85423119 |
Other features
| Specification | Value |
|---|---|
| Maximum internal memory | 128 GB |
