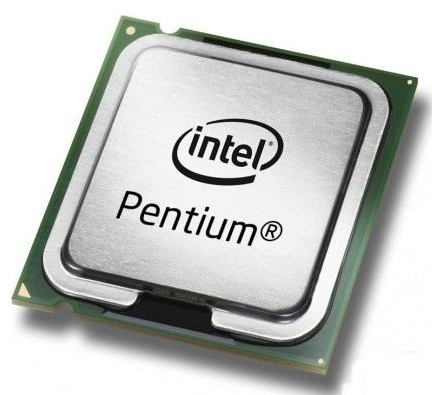

Intel Pentium G4560

Model Intel Pentium G4560Part no. S26361-F4029-E104

78 specifications Checked today

Overview

Brand: Fujitsu
Category: CPU
Model: Intel Pentium G4560
Part number: S26361-F4029-E104
Also known as: Fujitsu Intel Pentium G4560 processor 3.5 GHz 3 MB Smart Cache

78 specifications in 7 groups

Specification	Value
Processor family	Intel Pentium G
Processor model	G4560
Processor base frequency	3.5 GHz
Processor cores	2
Processor socket	LGA 1151 (Socket H4)
Processor lithography	14 nm
Component for	PC
Processor series	Intel Pentium G4500 Series For Desktop
Processor threads	4
System bus rate	8 GT/s
Processor operating modes	64-bit
Processor cache	3 MB
Processor cache type	Smart Cache
Thermal Design Power (TDP)	54 W
Compatible chipsets	Intel® B150, Intel® H110, Intel® H170, Intel Q150, Intel® Q170, Intel® Z170
Stepping	B0
Bus type	DMI3
Number of QPI links	0
Processor codename	Kaby Lake

Specification	Value
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory clock speeds supported by processor	1333,1600,2133,2400 MHz
Memory voltage supported by processor	1.35 V
Memory channels	Dual-channel
ECC	Yes

Specification	Value
Discrete graphics card	No
On-board graphics card	Yes
On-board graphics card model	Intel® HD Graphics 610
Maximum on-board graphics card memory	64 GB
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1050 MHz
Number of displays supported (on-board graphics)	3
On-board graphics card 4K support	Yes
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.4
On-board graphics card maximum resolution (DisplayPort)	4096 x 2304 pixels
On-board graphics card maximum resolution (HDMI)	4096 x 2304 pixels
On-board graphics card maximum resolution (eDP - Integrated Flat Panel)	4096 x 2304 pixels
On-board graphics card refresh rate at maximum resolution (DisplayPort)	60 Hz
On-board graphics card refresh rate at maximum resolution (HDMI)	24 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)	60 Hz

Specification	Value
Execute Disable Bit	Yes
Idle States	Yes
Thermal Monitoring Technologies	Yes
Market segment	Desktop
Maximum number of PCI Express lanes	16
PCI Express slots version	3.0
PCI Express configurations	1x16, 1x8+2x4, 2x8
Supported instruction sets	SSE4.1, SSE4.2
CPU configuration (max)	1
Embedded options available	No
Scalability	1S
Thermal solution specification	PCG 2015C

Specification	Value
Enhanced Intel SpeedStep Technology	Yes
Intel Trusted Execution Technology	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Turbo Boost Technology	No
Conflict-Free processor	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel TSX-NI	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® OS Guard	Yes
Intel® Optane™ Memory Ready	No
Intel® Secure Key	Yes
Intel® vPro™ Platform Eligibility	No

Specification	Value
Tjunction	100 °C

Specification	Value
Processor package size	37.5 x 37.5 mm
