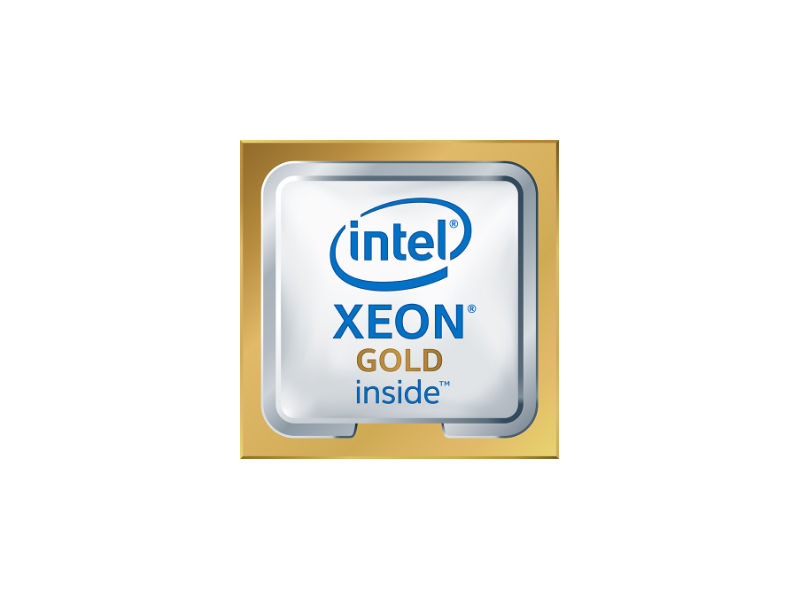

Intel Gold 6354
Model Intel Gold 6354Part no. PY-CP62X7EAN 4063872925570
62 specifications Checked today
- ProcessorIntel® Xeon® Gold
- GraphicsNot available
- Processor manufacturerIntel
- Maximum internal memory supported by processor6 TB
- Discrete graphics cardNo
- Execute Disable BitYes
Overview
- Processor
- Intel® Xeon® Gold
- Graphics
- Not available
- Processor manufacturer
- Intel
- Maximum internal memory supported by processor
- 6 TB
- Discrete graphics card
- No
- Execute Disable Bit
- Yes
- Brand
- Fujitsu
- Category
- CPU
- Model
- Intel Gold 6354
- Part number
- PY-CP62X7
- EAN / UPC
- 4063872925570
- Also known as
- Fujitsu Xeon Intel Gold 6354 processor 3 GHz 39 MB
Specifications
62 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® Gold |
| Processor generation | 3rd Generation Intel® Xeon® Scalable |
| Processor model | 6354 |
| Processor base frequency | 3 GHz |
| Processor cores | 18 |
| Processor socket | LGA 4189 |
| Processor lithography | 10 nm |
| Component for | Server/workstation |
| Processor threads | 36 |
| System bus rate | 11.2 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.6 GHz |
| Processor cache | 39 MB |
| Thermal Design Power (TDP) | 205 W |
| Processor codename | Ice Lake |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 6 TB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory channels | Octa-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | No |
| On-board graphics card model | Not available |
| Discrete graphics card model | Not available |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 64 |
| PCI Express slots version | 4.0 |
| Supported instruction sets | SSE4.2, AVX, AVX 2.0, AVX-512 |
| Scalability | 2S |
| Export Control Classification Number (ECCN) | 5A992CN3 |
| Commodity Classification Automated Tracking System (CCATS) | G178966 |
Processor special features
| Specification | Value |
|---|---|
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Transactional Synchronization Extensions | Yes |
| Intel® Total Memory Encryption | Yes |
| Intel® Crypto Acceleration | Yes |
| Intel® Platform Firmware Resilience Support | Yes |
| Maximum Enclave Size Support for Intel® SGX | 64 GB |
| AVX-512 Fused Multiply-Add (FMA) units | 2 |
| Intel 64 | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| Intel® Optane™ DC Persistent Memory Supported | Yes |
| Intel® Resource Director Technology (Intel® RDT) | Yes |
| Intel® Run Sure Technology | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Mode-based Execute Control (MBE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 77 °C |
Technical details
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Target market | Cloud Computing |
| Launch date | Q2'21 |
| Memory speed (max) | 3200 MHz |
| Number of UPI links | 3 |
| Status | Launched |
Other features
| Specification | Value |
|---|---|
| Maximum internal memory | 6 TB |
