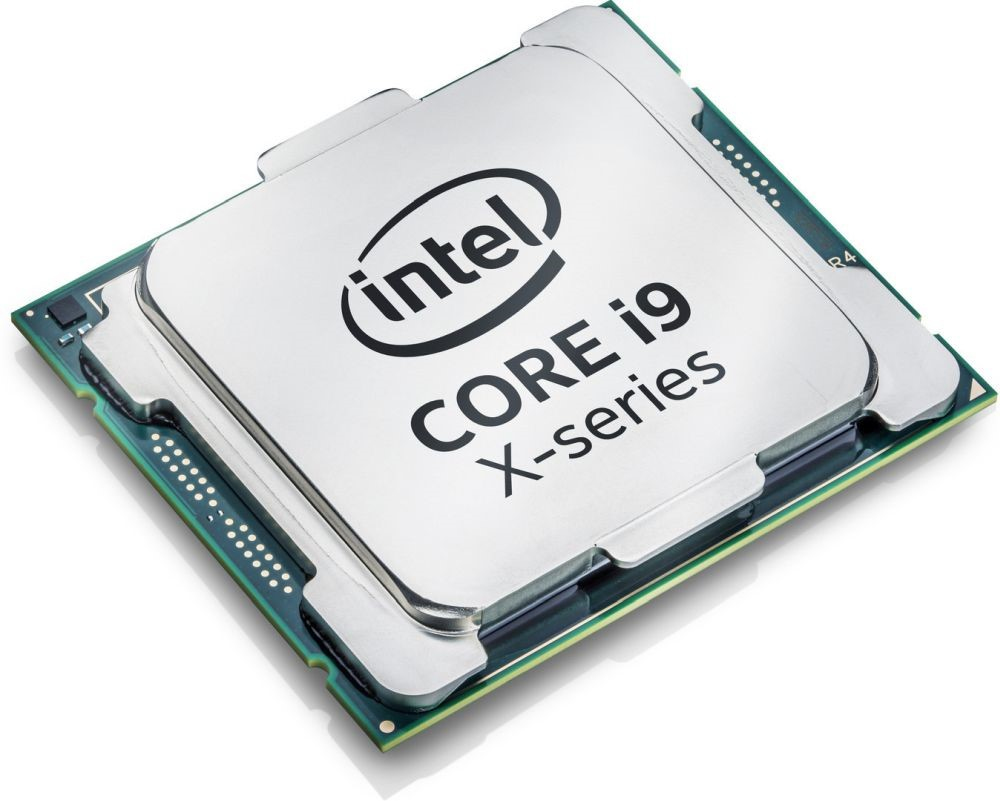

Intel Core i9-7900X
Model Intel Core i9-7900XPart no. S26361-F5009-E790
68 specifications Checked today
- ProcessorIntel® Core™ i9 X-series
- GraphicsNot available
- TypeProcessor
- Processor manufacturerIntel
- Maximum internal memory supported by processor128 GB
- Discrete graphics cardNo
Overview
- Processor
- Intel® Core™ i9 X-series
- Graphics
- Not available
- Type
- Processor
- Processor manufacturer
- Intel
- Maximum internal memory supported by processor
- 128 GB
- Discrete graphics card
- No
- Brand
- Fujitsu
- Category
- CPU
- Model
- Intel Core i9-7900X
- Part number
- S26361-F5009-E790
- Also known as
- Fujitsu Core Intel i9-7900X processor 3.3 GHz 13.75 MB L3
Specifications
68 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i9 X-series |
| Processor generation | 7th gen Intel® Core™ i9 |
| Processor model | i9-7900X |
| Processor base frequency | 3.3 GHz |
| Processor cores | 10 |
| Processor socket | LGA 2066 (Socket R4) |
| Processor lithography | 14 nm |
| Component for | PC |
| Processor threads | 20 |
| System bus rate | 8 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 4.3 GHz |
| Processor cache | 13.75 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 140 W |
| Compatible chipsets | Intel® X299 |
| Stepping | U0 |
| Bus type | DMI3 |
| Number of QPI links | 0 |
| Processor codename | Skylake |
| Processor code | SR3L2 |
| Processor ARK ID | 123613 |
| Generation | 7th Generation |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 128 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory channels | Quad-channel |
| ECC | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Market segment | Desktop |
| Maximum number of PCI Express lanes | 44 |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX 2.0, AVX-512, SSE4.1, SSE4.2 |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| PCI Express CEM revision | 3.0 |
| Scalability | 1S |
| Thermal solution specification | PCG 2017X |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| AVX-512 Fused Multiply-Add (FMA) units | 2 |
| Conflict-Free processor | Yes |
| Intel 64 | Yes |
| Intel Turbo Boost Max Technology 3.0 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Optane™ Memory Ready | Yes |
| Virtual Reality (VR) ready | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tjunction | 95 °C |
Technical details
| Specification | Value |
|---|---|
| Processor cache | 14080 KB |
| Product type | Processor |
| Bus bandwidth | 8 |
| Bus speed | 8 GT/s |
| Bus type units | GT/s |
| Intel Turbo Boost Max Technology frequency | 4500 MHz |
| Last change | 63903513 |
| Launch date | Q2'17 |
| Maximum memory | 128 GB |
| Processor brand name | Intel Core i7 X-series Intel Core i7 X-series processor |
| Product family | Intel Core Processors |
| Status | Launched |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8542310001 |
Other features
| Specification | Value |
|---|---|
| Maximum internal memory | 131072 MB |
