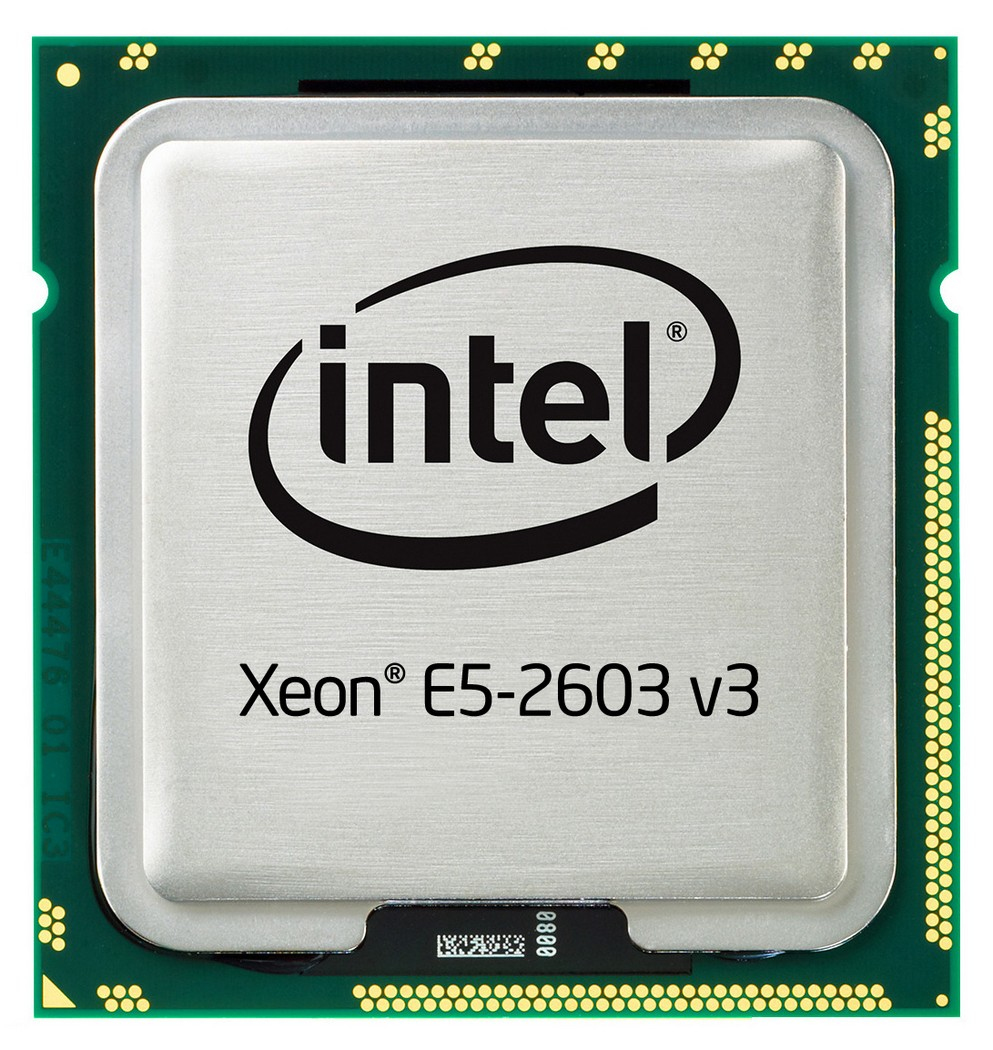

Fujitsu E5-2603 V3
Model E5-2603 V3Part no. S26361-F3849-E103
51 specifications Checked 4 days ago
- ProcessorIntel Xeon E5 v3
- Memory types supported by processorDDR3-SDRAM
- On-board graphics cardNo
- Execute Disable BitYes
- Tcase72.8 °C
Overview
- Processor
- Intel Xeon E5 v3
- Memory types supported by processor
- DDR3-SDRAM
- On-board graphics card
- No
- Execute Disable Bit
- Yes
- Tcase
- 72.8 °C
- Brand
- Fujitsu
- Category
- CPU
- Model
- E5-2603 V3
- Part number
- S26361-F3849-E103
- Also known as
- Fujitsu E5-2603 V3 processor 1.6 GHz 15 MB Smart Cache
Specifications
51 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel Xeon E5 v3 |
| Processor model | E5-2603V3 |
| Processor base frequency | 1.6 GHz |
| Processor cores | 6 |
| Processor socket | LGA 2011-v3 |
| Processor lithography | 22 nm |
| Component for | Server/workstation |
| Processor series | Intel Xeon E5-2600 v3 |
| Processor threads | 6 |
| System bus rate | 6.4 GT/s |
| Processor operating modes | 64-bit |
| Processor cache | 15 MB |
| Processor cache type | Smart Cache |
| Thermal Design Power (TDP) | 85 W |
| VID Voltage Range | 0.65 - 1.3 V |
| Stepping | R2 |
| Bus type | QPI |
| Number of QPI links | 2 |
| Memory bandwidth supported by processor (max) | 51 GB/s |
Memory
| Specification | Value |
|---|---|
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1600 MHz |
| Memory channels | Quad-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 40 |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX |
| Bandwidth | 6.4 MB/s |
| CPU configuration (max) | 2 |
| Embedded options available | No |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Flex Memory Access | No |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Turbo Boost Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Enhanced Halt State | Yes |
| Intel TSX-NI | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 72.8 °C |
