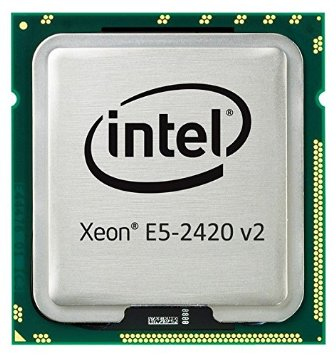

Fujitsu E5-2420 V2
Model E5-2420 V2Part no. S26361-F3833-E220
54 specifications Checked 5 days ago
- ProcessorIntel® Xeon® E5 V2 Family
- Maximum internal memory supported by processor384 GB
- On-board graphics cardNo
- Execute Disable BitYes
- Tcase76 °C
- Processor package size45 x 42.5 mm
Overview
- Processor
- Intel® Xeon® E5 V2 Family
- Maximum internal memory supported by processor
- 384 GB
- On-board graphics card
- No
- Execute Disable Bit
- Yes
- Tcase
- 76 °C
- Processor package size
- 45 x 42.5 mm
- Brand
- Fujitsu
- Category
- CPU
- Model
- E5-2420 V2
- Part number
- S26361-F3833-E220
- Also known as
- Fujitsu E5-2420 V2 processor 2.2 GHz 15 MB Smart Cache
Specifications
54 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® E5 V2 Family |
| Processor model | E5-2420V2 |
| Processor base frequency | 2.2 GHz |
| Processor cores | 6 |
| Processor socket | LGA 1356 (Socket B2) |
| Processor lithography | 22 nm |
| Component for | Server/workstation |
| Processor series | Intel Xeon E5-2400 v2 |
| Processor threads | 12 |
| System bus rate | 7.2 GT/s |
| Processor operating modes | 32-bit, 64-bit |
| Processor boost frequency | 2.7 GHz |
| Processor cache | 15 MB |
| Processor cache type | Smart Cache |
| Configurable TDP-down | 80 W |
| VID Voltage Range | 0.6 - 1.3 V |
| Bus type | QPI |
| Number of QPI links | 1 |
| Memory bandwidth supported by processor (max) | 38.4 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 384 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066,1333,1600 MHz |
| Memory channels | Triple-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 24 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16, 1x4, 1x8 |
| Supported instruction sets | AVX |
| CPU configuration (max) | 2 |
| Embedded options available | No |
| Physical Address Extension (PAE) | 46 bit |
| Physical Address Extension (PAE) | Yes |
| Scalability | 2S |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Flex Memory Access | No |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Conflict-Free processor | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Identity Protection Technology version | No |
| Intel TSX-NI | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 76 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 45 x 42.5 mm |
