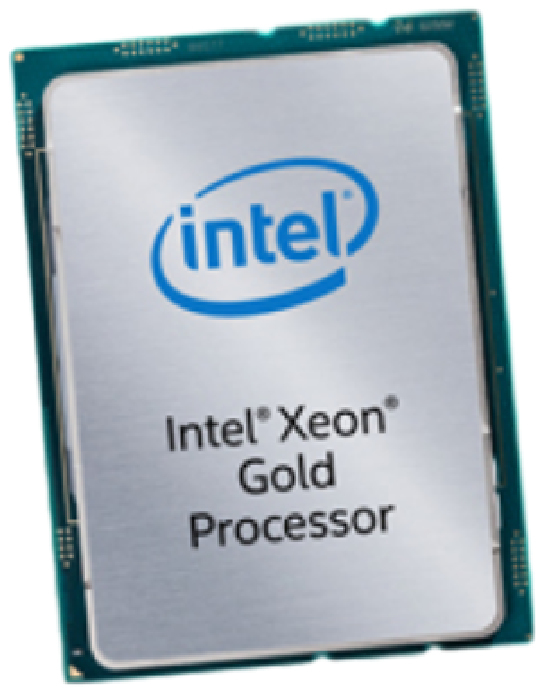

Intel Xeon Gold 6136
Model Intel Xeon Gold 6136Part no. PROGD61362SH
50 specifications Checked today
- ProcessorIntel® Xeon® Gold
- Processor manufacturerIntel
- Maximum internal memory supported by processor768 GB
- Discrete graphics cardNo
- Execute Disable BitYes
- Tcase85 °C
Overview
- Processor
- Intel® Xeon® Gold
- Processor manufacturer
- Intel
- Maximum internal memory supported by processor
- 768 GB
- Discrete graphics card
- No
- Execute Disable Bit
- Yes
- Tcase
- 85 °C
- Brand
- EMC
- Category
- CPU
- Model
- Intel Xeon Gold 6136
- Part numbers
- PROGD61362SH, EMC-CON1-0832, PROGD61361SH
- Also known as
- EMC Intel Xeon Gold 6136 processor 3 GHz 24.75 MB L3
Specifications
50 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® Gold |
| Processor generation | 1st Generation Intel® Xeon® Scalable |
| Processor model | 6136 |
| Processor base frequency | 3 GHz |
| Processor cores | 12 |
| Processor socket | LGA 3647 (Socket P) |
| Processor lithography | 14 nm |
| Component for | Server/workstation |
| Processor series | Intel Xeon Gold 6000 Series |
| Processor threads | 24 |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.7 GHz |
| Processor cache | 24.75 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 150 W |
| Stepping | H0 |
| Processor codename | Skylake |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 768 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory channels | Hexa-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | No |
| On-board graphics card model | Not available |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 48 |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX, AVX 2.0, AVX-512, SSE4.2 |
| Embedded options available | No |
| Scalability | S4S |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Conflict-Free processor | Yes |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Intel Turbo Boost Max Technology 3.0 | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Optane™ Memory Ready | No |
| Intel® vPro™ Platform Eligibility | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 85 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 76.0 x 56.5 mm |
