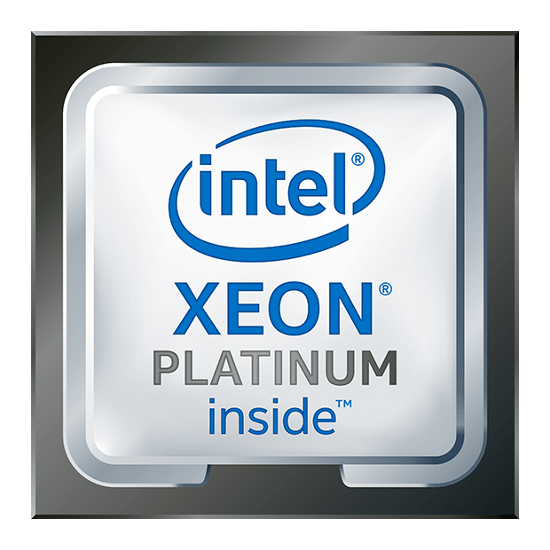

Xeon Platinum 8268
Model Xeon Platinum 8268Part no. 338-BRVPEAN 5397184657775
66 specifications Checked today
- ProcessorIntel® Xeon® Platinum
- GraphicsNot available
- TypeProcessor
- Processor manufacturerIntel
- Maximum internal memory supported by processor1 TB
- Discrete graphics cardNo
Overview
- Processor
- Intel® Xeon® Platinum
- Graphics
- Not available
- Type
- Processor
- Processor manufacturer
- Intel
- Maximum internal memory supported by processor
- 1 TB
- Discrete graphics card
- No
- Brand
- Dell
- Category
- CPU
- Model
- Xeon Platinum 8268
- Part number
- 338-BRVP
- EAN / UPC
- 5397184657775
- Also known as
- DELL Xeon Platinum 8268 processor 2.9 GHz 35.75 MB Tray
Specifications
66 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® Platinum |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor model | 8268 |
| Processor base frequency | 2.9 GHz |
| Processor cores | 24 |
| Processor socket | LGA 3647 (Socket P) |
| Processor lithography | 14 nm |
| Package type | Tray |
| Cooler included | No |
| Component for | Server/workstation |
| Processor threads | 48 |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.9 GHz |
| Processor cache | 35.75 MB |
| Thermal Design Power (TDP) | 205 W |
| Processor codename | Cascade Lake |
| Processor ARK ID | 192481 |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 1 TB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2933 MHz |
| Memory channels | Hexa-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | No |
| On-board graphics card model | Not available |
| Discrete graphics card model | Not available |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 48 |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX-512 |
| Embedded options available | No |
| PCI Express CEM revision | 3.0 |
| Scalability | S8S |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| AVX-512 Fused Multiply-Add (FMA) units | 2 |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Intel Turbo Boost Max Technology 3.0 | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| Intel® Resource Director Technology (Intel® RDT) | Yes |
| Intel® Run Sure Technology | Yes |
| Intel® Speed Select Technology - Base Frequency (Intel® SST-BF) | No |
| Intel® Volume Management Device (VMD) | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
| Mode-based Execute Control (MBE) | Yes |
| Intel Speed Select Technology (SST) | No |
| Intel® Optane™ DC Persistent Memory technology | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 84 °C |
Technical details
| Specification | Value |
|---|---|
| Product type | Processor |
| Launch date | Q2'19 |
| Memory speed (max) | 2933 MHz |
| Number of UPI links | 3 |
| Status | Launched |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85423119 |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 76.0 x 56.5 mm |
Other features
| Specification | Value |
|---|---|
| Compatibility | - PowerEdge C6420 - PowerEdge MX740C - PowerEdge R740XD - PowerEdge R940 - PowerEdge R940xa - PowerEdge MX840C - PowerEdge R640 - PowerEdge R740 - Precision Workstation R7920 - PowerEdge R840 |
