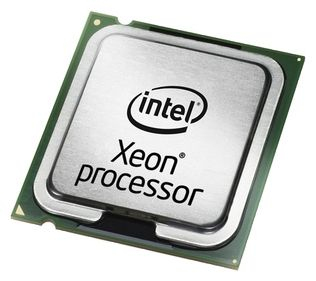

Dell Xeon E5-4610
Model Xeon E5-4610Part no. 374-14603
48 specifications Checked 4 days ago
- ProcessorIntel® Xeon® E5 Family
- Maximum internal memory supported by processor384 GB
- Execute Disable BitYes
Overview
- Processor
- Intel® Xeon® E5 Family
- Maximum internal memory supported by processor
- 384 GB
- Execute Disable Bit
- Yes
- Brand
- Dell
- Category
- CPU
- Model
- Xeon E5-4610
- Part number
- 374-14603
- Also known as
- DELL Xeon E5-4610 processor 2.4 GHz 15 MB L3 Tray
Specifications
48 specifications in 5 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® E5 Family |
| Processor model | E5-4610 |
| Processor base frequency | 2.4 GHz |
| Processor cores | 6 |
| Processor socket | LGA 2011 (Socket R) |
| Processor lithography | 32 nm |
| Package type | Tray |
| Component for | Server/workstation |
| Processor threads | 12 |
| System bus rate | 7.2 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 2.9 GHz |
| Processor cache | 15 MB |
| Processor cache type | L3 |
| L3 cache speed | 2.4 GHz |
| Thermal Design Power (TDP) | 95 W |
| VID Voltage Range | 0.6 - 1.35 V |
| Compatible chipsets | Intel® C602, Intel® C602J, Intel® C604, Intel® C606, Intel C608 |
| Stepping | C2 |
| Bus type | QPI |
| Number of QPI links | 2 |
| Memory bandwidth supported by processor (max) | 42.6 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 384 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066,1333 MHz |
| Memory channels | Dual-channel |
| ECC | Yes |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 40 |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX |
| CPU configuration (max) | 4 |
| Embedded options available | No |
| Scalability | 4S |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Demand Based Switching | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
