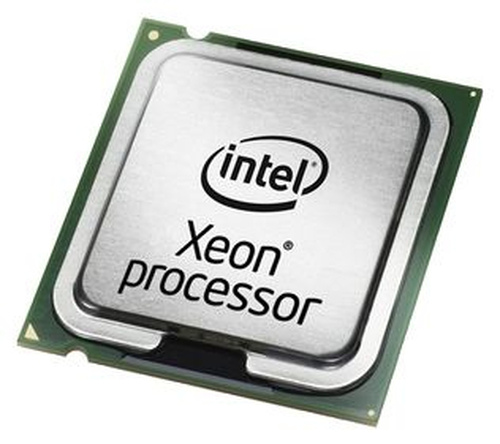

Dell Xeon E5-2687W
Model Xeon E5-2687WPart no. 213-15957
50 specifications Checked 3 days ago
- ProcessorIntel® Xeon® E5 Family
- Maximum internal memory supported by processor750 GB
- On-board graphics cardNo
- Execute Disable BitYes
- Tcase67 °C
Overview
- Processor
- Intel® Xeon® E5 Family
- Maximum internal memory supported by processor
- 750 GB
- On-board graphics card
- No
- Execute Disable Bit
- Yes
- Tcase
- 67 °C
- Brand
- Dell
- Category
- CPU
- Model
- Xeon E5-2687W
- Part number
- 213-15957
- Also known as
- DELL Xeon E5-2687W processor 3.1 GHz 20 MB L3 Box
Specifications
50 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® E5 Family |
| Processor model | E5-2687W |
| Processor base frequency | 3.1 GHz |
| Processor cores | 8 |
| Processor socket | LGA 2011 (Socket R) |
| Processor lithography | 32 nm |
| Package type | Box |
| Component for | Server/workstation |
| Processor threads | 16 |
| System bus rate | 8 GT/s |
| Processor operating modes | 32-bit, 64-bit |
| Processor boost frequency | 3.8 GHz |
| Processor cache | 20 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 150 W |
| VID Voltage Range | 0.6 - 1.35 V |
| Stepping | C2 |
| Bus type | QPI |
| CPU multiplier (bus/core ratio) | 38 |
| Number of QPI links | 2 |
| Memory bandwidth supported by processor (max) | 51.2 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 750 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066,1333,1600 MHz |
| Memory channels | Quad-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX |
| CPU configuration (max) | 2 |
| Scalability | S2S |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Demand Based Switching | Yes |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® vPro™ Platform Eligibility | No |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 67 °C |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
