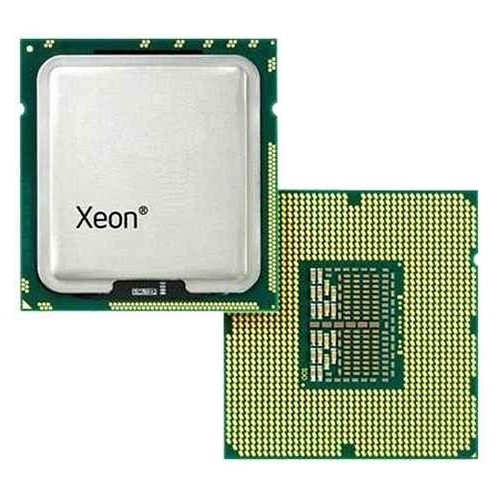

Dell Xeon E5-2660 v3

Dell Xeon E5-2660 v3

Model Xeon E5-2660 v3Part no. 338-BGNOEAN 884116181064

51 specifications Checked 4 days ago
  • ProcessorIntel Xeon E5 v3
  • Maximum internal memory supported by processor786 GB
  • On-board graphics cardNo
  • Execute Disable BitYes
  • Tcase79 °C
See all specifications

Overview

Processor
Intel Xeon E5 v3
Maximum internal memory supported by processor
786 GB
On-board graphics card
No
Execute Disable Bit
Yes
Tcase
79 °C
Brand
Dell
Category
CPU
Model
Xeon E5-2660 v3
Part number
338-BGNO
EAN / UPC
884116181064
Also known as
DELL Xeon E5-2660 v3 processor 2.6 GHz 25 MB Smart Cache

Specifications

51 specifications in 7 groups

Processor

Processor familyIntel Xeon E5 v3
Processor modelE5-2660V3
Processor base frequency2.6 GHz
Processor cores10
Processor socketLGA 2011-v3
Processor lithography22 nm
Component forServer/workstation
Processor threads20
System bus rate9.6 GT/s
Processor operating modes64-bit
Processor boost frequency3.3 GHz
Processor cache25 MB
Processor cache typeSmart Cache
Thermal Design Power (TDP)105 W
VID Voltage Range0.65 - 1.3 V
SteppingM1
Bus typeQPI
Number of QPI links2
Memory bandwidth supported by processor (max)68 GB/s

Memory

Maximum internal memory supported by processor786 GB
Memory types supported by processorDDR4-SDRAM
Memory clock speeds supported by processor1600,1866,2133 MHz
Memory channelsQuad-channel
ECCYes

Graphics

On-board graphics cardNo

Features

Execute Disable BitYes
Idle StatesYes
Thermal Monitoring TechnologiesYes
Market segmentServer
Maximum number of PCI Express lanes40
PCI Express slots version3.0
Supported instruction setsAVX 2.0
CPU configuration (max)2
Embedded options availableNo
Physical Address Extension (PAE)46 bit
Scalability2S

Processor special features

Intel Flex Memory AccessNo
Intel Trusted Execution TechnologyYes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Identity Protection Technology (Intel® IPT)No
Intel® Turbo Boost Technology2.0
Intel 64Yes
Intel TSX-NINo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® OS GuardYes
Intel® Secure KeyYes
Intel® vPro™ Platform EligibilityYes

Operational conditions

Tcase79 °C

Other features

CompatibilityPowerEdge C4130 PowerEdge R430 PowerEdge R530 PowerEdge R630 PowerEdge R730 PowerEdge T430 PowerEdge T630
