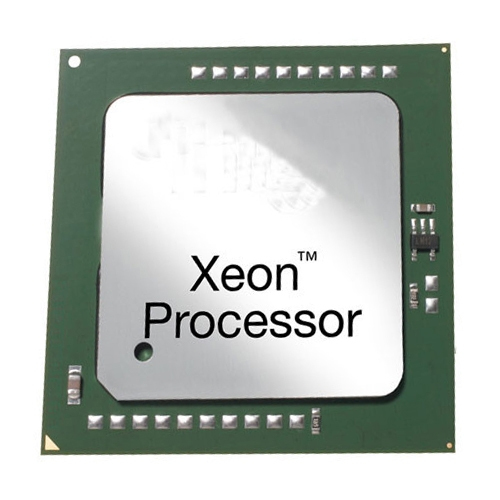

Dell Xeon 3040
Model Xeon 3040Part no. 374-11264
33 specifications Checked 2 days ago
- ProcessorIntel® Xeon® 3000 Sequence
- ECCNo
- Execute Disable BitYes
- Tcase61.4 °C
- Processor package size37.5 mm
Overview
- Processor
- Intel® Xeon® 3000 Sequence
- ECC
- No
- Execute Disable Bit
- Yes
- Tcase
- 61.4 °C
- Processor package size
- 37.5 mm
- Brand
- Dell
- Category
- CPU
- Model
- Xeon 3040
- Part number
- 374-11264
- Also known as
- DELL Xeon 3040 processor 1.86 GHz 2 MB L2
Specifications
33 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® 3000 Sequence |
| Processor model | 3040 |
| Processor base frequency | 1.86 GHz |
| Processor cores | 2 |
| Processor socket | LGA 775 (Socket T) |
| Processor lithography | 65 nm |
| Component for | Server/workstation |
| Processor operating modes | 64-bit |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor front side bus | 1066 MHz |
| Thermal Design Power (TDP) | 65 W |
| VID Voltage Range | 0.8500 - 1.5 V |
| FSB Parity | No |
Memory
| Specification | Value |
|---|---|
| ECC | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| Number of Processing Die Transistors | 167 M |
| Processing Die size | 111 mm² |
| Physical Address Extension (PAE) | Yes |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Intel Demand Based Switching | No |
| Intel Virtualization Technology (VT-x) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 61.4 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 37.5 mm |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-x |
| Compatibility | Dell PowerEdge 860 |
