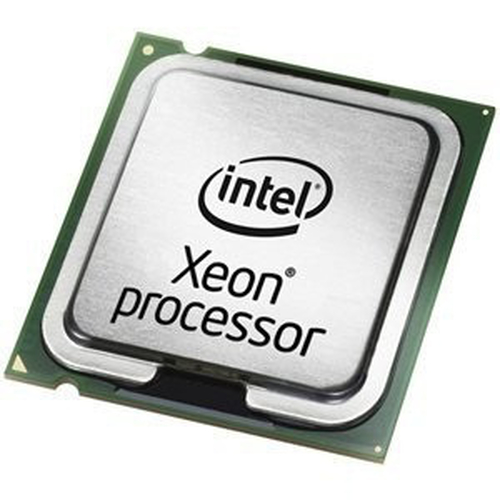

Dell Intel Xeon X3430
Model Intel Xeon X3430Part no. 374-13077
48 specifications Checked 2 days ago
- ProcessorIntel® Xeon® 3000 Sequence
- Maximum internal memory supported by processor32 GB
- On-board graphics cardNo
- Execute Disable BitYes
- Tcase72.7 °C
- Processor package size37.5 mm
Overview
- Processor
- Intel® Xeon® 3000 Sequence
- Maximum internal memory supported by processor
- 32 GB
- On-board graphics card
- No
- Execute Disable Bit
- Yes
- Tcase
- 72.7 °C
- Processor package size
- 37.5 mm
- Brand
- Dell
- Category
- CPU
- Model
- Intel Xeon X3430
- Part number
- 374-13077
- Also known as
- DELL Intel Xeon X3430 processor 2.4 GHz 8 MB L3
Specifications
48 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® 3000 Sequence |
| Processor model | X3430 |
| Processor base frequency | 2.4 GHz |
| Processor cores | 4 |
| Processor socket | LGA 1156 (Socket H) |
| Processor lithography | 45 nm |
| Component for | Server/workstation |
| Processor threads | 4 |
| System bus rate | 2.5 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 2.8 GHz |
| Processor cache | 8 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 95 W |
| VID Voltage Range | 0.65 - 1.4 V |
| FSB Parity | No |
| Stepping | B1 |
| Bus type | DMI |
| Memory bandwidth supported by processor (max) | 21 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066,1333 MHz |
| Memory channels | Dual-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Market segment | Server |
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x16, 2x8, 4x4 |
| Number of Processing Die Transistors | 774 M |
| Processing Die size | 296 mm² |
| Supported instruction sets | SSE4.2 |
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Physical Address Extension (PAE) | Yes |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | Yes |
| Intel Demand Based Switching | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 72.7 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 37.5 mm |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
