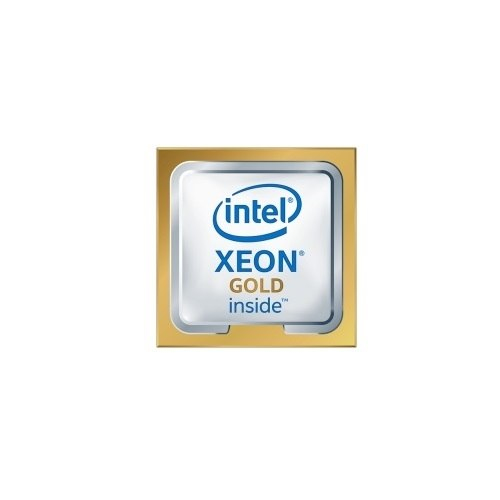

Dell Intel Xeon Gold 5118
Model Intel Xeon Gold 5118Part no. 338-BLTZEAN 884116306306
44 specifications Checked 3 days ago
- ProcessorIntel® Xeon® Gold
- GraphicsNot available
- Maximum internal memory supported by processor768 GB
- Discrete graphics cardNo
- Execute Disable BitYes
- Tcase81 °C
Overview
- Processor
- Intel® Xeon® Gold
- Graphics
- Not available
- Maximum internal memory supported by processor
- 768 GB
- Discrete graphics card
- No
- Execute Disable Bit
- Yes
- Tcase
- 81 °C
- Brand
- Dell
- Category
- CPU
- Model
- Intel Xeon Gold 5118
- Part number
- 338-BLTZ
- EAN / UPC
- 884116306306, 5397184035559
- Also known as
- DELL Intel Xeon Gold 5118 processor 2.3 GHz 16.5 MB L3
Specifications
44 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® Gold |
| Processor generation | 1st Generation Intel® Xeon® Scalable |
| Processor model | 5118 |
| Processor base frequency | 2.3 GHz |
| Processor cores | 12 |
| Processor socket | LGA 3647 (Socket P) |
| Processor lithography | 14 nm |
| Component for | Server/workstation |
| Processor threads | 24 |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.2 GHz |
| Processor cache | 16.5 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 105 W |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 768 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2400 MHz |
| Memory channels | Hexa-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | No |
| On-board graphics card model | Not available |
| Discrete graphics card model | Not available |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 48 |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX 2.0, AVX-512, SSE4.2 |
| Embedded options available | Yes |
Processor special features
| Specification | Value |
|---|---|
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Conflict-Free processor | Yes |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Intel Turbo Boost Max Technology 3.0 | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® Optane™ Memory Ready | No |
| Intel® vPro™ Platform Eligibility | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 81 °C |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85423119 |
Other features
| Specification | Value |
|---|---|
| Compatibility | - PowerEdge FC640 - PowerEdge R440 - PowerEdge MX740C - PowerEdge R940 - PowerEdge R740XD - PowerEdge R740 - PowerEdge T440 - PowerEdge R740xd2 - PowerEdge R840 - PowerEdge R540 - PowerEdge MX840c - PowerEdge R940xa - PowerEdge T640 - PowerEdge M640 - PowerEdge R640 - PowerEdge C6420 - PowerEdge C41 |
