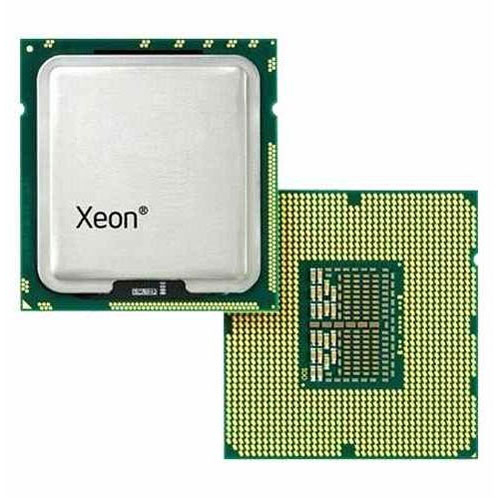

Dell Intel Xeon E5506 (2.13GHz, 4M Cache, 4.86 GT/s QPI)
Model Intel Xeon E5506 (2.13GHz, 4M Cache, 4.86 GT/s QPI)Part no. 374-11983
36 specifications Checked 3 days ago
- ProcessorIntel® Xeon® 5000 Sequence
- Maximum internal memory supported by processor144 GB
- On-board graphics cardNo
- Execute Disable BitYes
- Tcase76 °C
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Maximum internal memory supported by processor
- 144 GB
- On-board graphics card
- No
- Execute Disable Bit
- Yes
- Tcase
- 76 °C
- Brand
- Dell
- Category
- CPU
- Model
- Intel Xeon E5506 (2.13GHz, 4M Cache, 4.86 GT/s QPI)
- Part number
- 374-11983
- Also known as
- DELL Intel Xeon E5506 (2.13GHz, 4M Cache, 4.86 GT/s QPI) processor 4 MB L3
Specifications
36 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | E5506 |
| Processor base frequency | 2.13 GHz |
| Processor cores | 4 |
| Processor socket | Socket B (LGA 1366) |
| Processor lithography | 45 nm |
| Component for | Server/workstation |
| Processor threads | 4 |
| System bus rate | 4.8 GT/s |
| Processor operating modes | 64-bit |
| Processor cache | 4 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 80 W |
| VID Voltage Range | 0.75 - 1.35 V |
| Bus type | QPI |
| CPU multiplier (bus/core ratio) | 16 |
| Number of QPI links | 2 |
| Memory bandwidth supported by processor (max) | 19.2 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 144 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800 MHz |
| Memory channels | Triple-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Market segment | Server |
| CPU configuration (max) | 2 |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | No |
| Intel Demand Based Switching | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 76 °C |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
