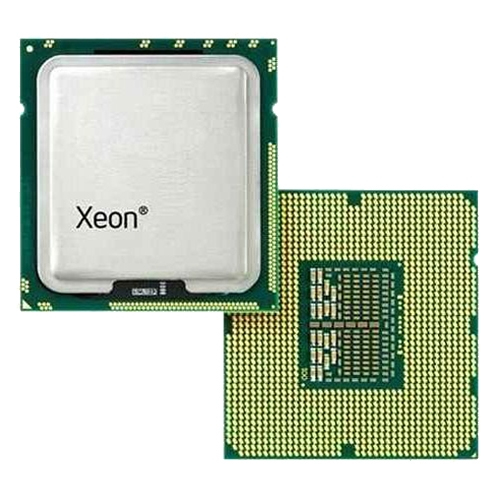

Dell Intel Xeon E5-2670 v2
Model Intel Xeon E5-2670 v2Part no. 338-BDTOEAN 5397063819072
52 specifications Checked 2 days ago
- ProcessorIntel® Xeon® E5 V2 Family
- Maximum internal memory supported by processor768 GB
- On-board graphics cardNo
- Execute Disable BitYes
- Tcase82 °C
- Width52.5 mm
Overview
- Processor
- Intel® Xeon® E5 V2 Family
- Maximum internal memory supported by processor
- 768 GB
- On-board graphics card
- No
- Execute Disable Bit
- Yes
- Tcase
- 82 °C
- Width
- 52.5 mm
- Brand
- Dell
- Category
- CPU
- Model
- Intel Xeon E5-2670 v2
- Part numbers
- 338-BDTO, 338-BDLO, 338-BDBG, 338-BDEB, 338-BDHC, 338-BDHW +2 more
- EAN / UPC
- 5397063819072
- Also known as
- DELL Intel Xeon E5-2670 v2 processor 2.5 GHz 25 MB L3
Specifications
52 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® E5 V2 Family |
| Processor model | E5-2670V2 |
| Processor base frequency | 2.5 GHz |
| Processor cores | 10 |
| Processor socket | LGA 2011 (Socket R) |
| Processor lithography | 22 nm |
| Component for | Server/workstation |
| Processor threads | 20 |
| System bus rate | 8 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.3 GHz |
| Processor cache | 25 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 115 W |
| VID Voltage Range | 0.6 - 1.30 V |
| Bus type | QPI |
| Number of QPI links | 2 |
| Memory bandwidth supported by processor (max) | 59.7 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 768 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066,1333,1600,1866 MHz |
| Memory channels | Quad-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 40 |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX |
| Embedded options available | No |
| Physical Address Extension (PAE) | Yes |
| Scalability | 2S |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Flex Memory Access | No |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | Yes |
| Intel Demand Based Switching | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Secure Key | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 82 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 52.5 mm |
| Depth | 45 mm |
Other features
| Specification | Value |
|---|---|
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
What people say
Reviews & ratings
Dell Intel Xeon E5-2670 v2
No reviews yet
Be the first to tell others how Dell Intel Xeon E5-2670 v2 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Dell Intel Xeon E5-2670 v2
All cpu comparisons- Dell Intel Xeon E5-2670 v2 vsDell Xeon 3040Compare specs
- Dell Intel Xeon E5-2670 v2 vsDell 374-11174 processorCompare specs
- Dell Intel Xeon E5-2670 v2 vsDell Intel Xeon E5-2470Compare specs
- Dell Intel Xeon E5-2670 v2 vsDell Intel Xeon E5-2430LCompare specs
- Dell Intel Xeon E5-2670 v2 vsFujitsu Intel Xeon Processor E5-1620 v2Compare specs
- Dell Intel Xeon E5-2670 v2 vsFujitsu V26808-B8396-V10 processorCompare specs
- Dell Intel Xeon E5-2670 v2 vsLenovo Intel Xeon E5-4650 v2Compare specs
- Dell Intel Xeon E5-2670 v2 vsHP Intel Core i5-4570TCompare specs
Similar products
All cpus
Fujitsu

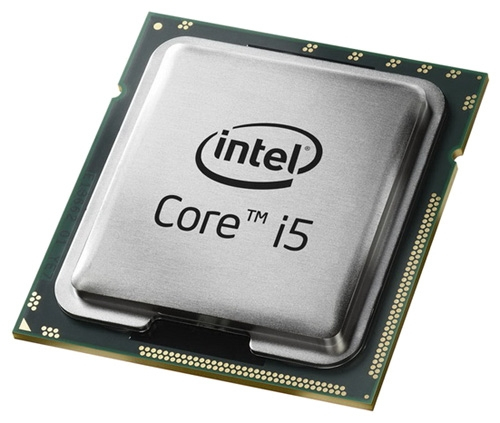

Core i5-7200U processor
