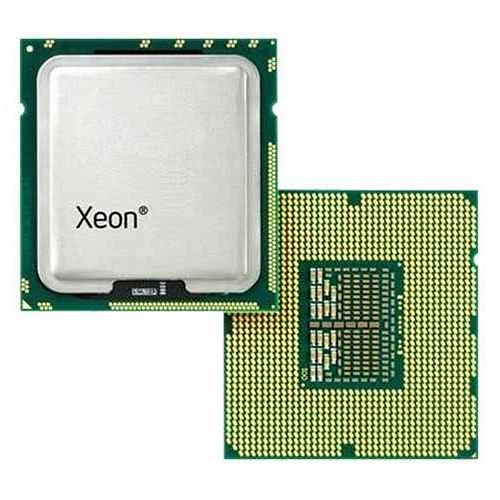

Dell Intel Xeon E5-2660 v3

Dell Intel Xeon E5-2660 v3

Model Intel Xeon E5-2660 v3Part no. 338-BHJOEAN 5397063824182

58 specifications Checked yesterday
  • ProcessorIntel Xeon E5 v3
  • Maximum internal memory supported by processor768 GB
  • On-board graphics cardNo
  • Execute Disable BitYes
  • Tcase79 °C
  • Processor package size52.5 x 45 mm
See all specifications

Overview

Processor
Intel Xeon E5 v3
Maximum internal memory supported by processor
768 GB
On-board graphics card
No
Execute Disable Bit
Yes
Tcase
79 °C
Processor package size
52.5 x 45 mm
Brand
Dell
Category
CPU
Model
Intel Xeon E5-2660 v3
Part number
338-BHJO
EAN / UPC
5397063824182, 5711783356165
Also known as
DELL Intel Xeon E5-2660 v3 processor 2.6 GHz 14 MB Smart Cache

Specifications

58 specifications in 7 groups

Processor

Processor familyIntel Xeon E5 v3
Processor modelE5-2660V3
Processor base frequency2.6 GHz
Processor cores10
Processor socketLGA 2011-v3
Processor lithography22 nm
Component forServer/workstation
Processor seriesIntel Xeon E5-2600 v3
Processor threads20
System bus rate9.6 GT/s
Processor operating modes64-bit
Processor boost frequency3.3 GHz
Processor cache14 MB
Processor cache typeSmart Cache
Thermal Design Power (TDP)105 W
VID Voltage Range0.65 - 1.3 V
SteppingM1
Bus typeQPI
Number of QPI links2
Memory bandwidth supported by processor (max)68 GB/s
Processor codenameHaswell

Memory

Maximum internal memory supported by processor768 GB
Memory types supported by processorDDR4-SDRAM
Memory clock speeds supported by processor1600,1866,2133 MHz
Memory channelsQuad-channel
ECCYes

Graphics

On-board graphics cardNo

Features

Execute Disable BitYes
Idle StatesYes
Thermal Monitoring TechnologiesYes
Market segmentServer
Maximum number of PCI Express lanes40
PCI Express slots version3.0
Supported instruction setsAVX 2.0
CPU configuration (max)2
Embedded options availableNo
Physical Address Extension (PAE)46 bit
Physical Address Extension (PAE)Yes
Scalability2S

Processor special features

Enhanced Intel SpeedStep TechnologyYes
Intel Flex Memory AccessYes
Intel Trusted Execution TechnologyYes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® Turbo Boost Technology2.0
Conflict-Free processorYes
Intel 64Yes
Intel Demand Based SwitchingYes
Intel TSX-NIYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® OS GuardYes
Intel® Secure KeyYes
Intel® vPro™ Platform EligibilityYes

Operational conditions

Tcase79 °C

Weight & dimensions

Processor package size52.5 x 45 mm
