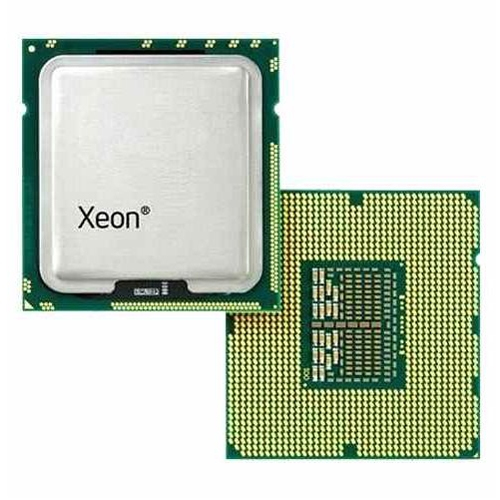

Intel Xeon E5-2620 V4
Model Intel Xeon E5-2620 V4Part no. 338-BJEUEAN 5397063831166
59 specifications Checked today
- ProcessorIntel® Xeon® E5 v4
- Processor manufacturerIntel
- Maximum internal memory supported by processor1.53 TB
- On-board graphics cardNo
- Execute Disable BitYes
- Tcase74 °C
Overview
- Processor
- Intel® Xeon® E5 v4
- Processor manufacturer
- Intel
- Maximum internal memory supported by processor
- 1.53 TB
- On-board graphics card
- No
- Execute Disable Bit
- Yes
- Tcase
- 74 °C
- Brand
- Dell
- Category
- CPU
- Model
- Intel Xeon E5-2620 V4
- Part number
- 338-BJEU
- EAN / UPC
- 5397063831166, 884116250210, 4058154202197, 5711783355755 +1 more
- Also known as
- DELL Intel Xeon E5-2620 V4 processor 2.1 GHz 20 MB Smart Cache
Specifications
59 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E5 v4 |
| Processor model | E5-2620V4 |
| Processor base frequency | 2.1 GHz |
| Processor cores | 8 |
| Processor socket | LGA 2011-v3 |
| Processor lithography | 14 nm |
| Component for | Server/workstation |
| Processor series | Intel Xeon E5-2600 v4 |
| Processor threads | 16 |
| System bus rate | 8 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3 GHz |
| Processor cache | 20 MB |
| Processor cache type | Smart Cache |
| Thermal Design Power (TDP) | 85 W |
| VID Voltage Range | 0 - 0 V |
| Stepping | R0 |
| Bus type | QPI |
| Number of QPI links | 2 |
| Memory bandwidth supported by processor (max) | 68.3 GB/s |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory supported by processor | 1.53 TB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866,2133 MHz |
| Memory channels | Quad-channel |
| ECC | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 40 |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX 2.0 |
| CPU configuration (max) | 2 |
| Embedded options available | Yes |
| Graphics & IMC lithography | 14 nm |
| Scalability | 2S |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Flex Memory Access | No |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Turbo Boost Technology | 2.0 |
| Conflict-Free processor | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel TSX-NI | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tcase | 74 °C |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85423119 |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 45 x 52.5 mm |
Other features
| Specification | Value |
|---|---|
| Compatibility | Intel® Server Board S2600CW2R Intel® Server Board S2600CW2SR Intel® Server Board S2600CWTR Intel® Server Board S2600CWTSR Intel® Server Board S2600KPR Intel® Server Board S2600KPFR Intel® Server Board S2600KPTR Intel® Server Board S2600TPR Intel® Server Board S2600TPFR Intel® Server Board S2600WTTR |
