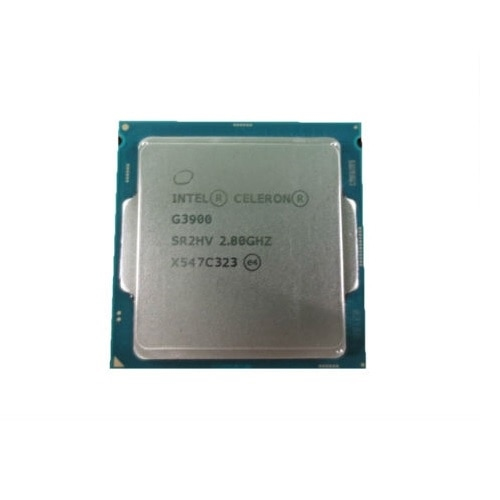

Dell Intel Celeron G3900

Model Intel Celeron G3900Part no. 338-BIKEEAN 5397063826315

78 specifications Checked 5 days ago

Overview

78 specifications in 6 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron® G
Processor model	G3900
Processor base frequency	2.8 GHz
Processor cores	2
Processor socket	LGA 1151 (Socket H4)
Processor lithography	14 nm
Component for	PC
Processor threads	2
System bus rate	8 GT/s
Processor operating modes	64-bit
Processor cache	2 MB
Processor cache type	Smart Cache
Thermal Design Power (TDP)	51 W
Bus type	DMI3
Memory bandwidth supported by processor (max)	34.1 GB/s
Processor codename	Skylake
Processor code	SR2HV
Processor ARK ID	90741

Specification	Value
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L, DDR4-SDRAM
Memory clock speeds supported by processor	1333,1600,1866,2133 MHz
Memory voltage supported by processor	1.35 V
Memory channels	Dual-channel
ECC	Yes

Specification	Value
Discrete graphics card	No
On-board graphics card	Yes
On-board graphics card model	Intel® HD Graphics 510
Maximum on-board graphics card memory	64 GB
On-board graphics card outputs supported	DVI, DisplayPort, Embedded DisplayPort (eDP), HDMI
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	950 MHz
Number of displays supported (on-board graphics)	3
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.4
On-board graphics card maximum resolution (DisplayPort)	4096 x 2304 pixels
On-board graphics card maximum resolution (HDMI)	4096 x 2304 pixels
On-board graphics card maximum resolution (eDP - Integrated Flat Panel)	4096 x 2304 pixels
On-board graphics card refresh rate at maximum resolution (DisplayPort)	60 Hz
On-board graphics card refresh rate at maximum resolution (HDMI)	24 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)	60 Hz
Discrete graphics card model	Not available

Specification	Value
Execute Disable Bit	Yes
Idle States	Yes
Thermal Monitoring Technologies	Yes
Market segment	Desktop
Maximum number of PCI Express lanes	16
PCI Express slots version	3.0
PCI Express configurations	1x16, 1x8+2x4, 2x8
Supported instruction sets	SSE4.1, SSE4.2
CPU configuration (max)	1
Embedded options available	Yes
Scalability	1S
Thermal solution specification	PCG 2015C

Specification	Value
Enhanced Intel SpeedStep Technology	Yes
Intel Trusted Execution Technology	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	Yes
Conflict-Free processor	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel TSX-NI	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® OS Guard	No
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® vPro™ Platform Eligibility	No

Specification	Value
Compatibility	- PowerEdge R230 - PowerEdge R330 - PowerEdge T130 - PowerEdge T330
