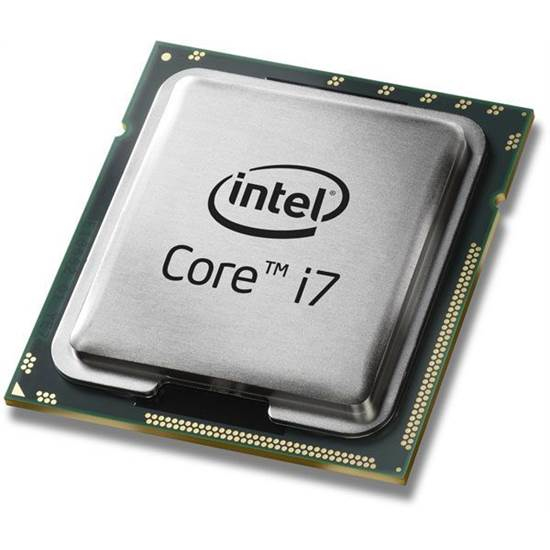

Dell i7-740QM processor
1.73 GHz 6 MB Smart Cache
Model i7-740QMPart no. P9KWW
42 specifications Checked 3 days ago
- ProcessorIntel® Core™ i7
- Memory channelsDual-channel
- On-board graphics cardNo
- Execute Disable BitYes
- Tjunction100 °C
- Processor cache6144 KB
Overview
- Processor
- Intel® Core™ i7
- Memory channels
- Dual-channel
- On-board graphics card
- No
- Execute Disable Bit
- Yes
- Tjunction
- 100 °C
- Processor cache
- 6144 KB
- Brand
- Dell
- Category
- CPU
- Model
- i7-740QM
- Part number
- P9KWW
- Also known as
- DELL i7-740QM processor 1.73 GHz 6 MB Smart Cache
Specifications
42 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Core™ i7 |
| Processor generation | Intel® Core™ i7 |
| Processor model | i7-740QM |
| Processor base frequency | 1.73 GHz |
| Processor cores | 4 |
| Processor socket | PGA988 |
| Processor lithography | 45 nm |
| Processor threads | 8 |
| System bus rate | 2.5 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 2.93 GHz |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| Thermal Design Power (TDP) | 45 W |
| Bus type | DMI |
| CPU multiplier (bus/core ratio) | 13 |
| Memory bandwidth supported by processor (max) | 21 GB/s |
Memory
| Specification | Value |
|---|---|
| Memory channels | Dual-channel |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Features
| Specification | Value |
|---|---|
| Execute Disable Bit | Yes |
| Thermal Monitoring Technologies | Yes |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8 |
| Number of Processing Die Transistors | 774 M |
| Processing Die size | 296 mm² |
| Supported instruction sets | SSE4.2 |
| Embedded options available | No |
| Physical Address Extension (PAE) | 36 bit |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 1.0 |
| Conflict-Free processor | No |
| Intel 64 | Yes |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Tjunction | 100 °C |
Technical details
| Specification | Value |
|---|---|
| Processor cache | 6144 KB |
Weight & dimensions
| Specification | Value |
|---|---|
| Processor package size | 37.5 x 37.5 mm |
